Blackmagic Design HyperDeck Studio HD Plus
Picture similar to product
6G-SDI and HDMI video output for live productions
Product number:
000101651
EAN:
9338716007121
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Blackmagic Design HyperDeck Studio HD Plus"

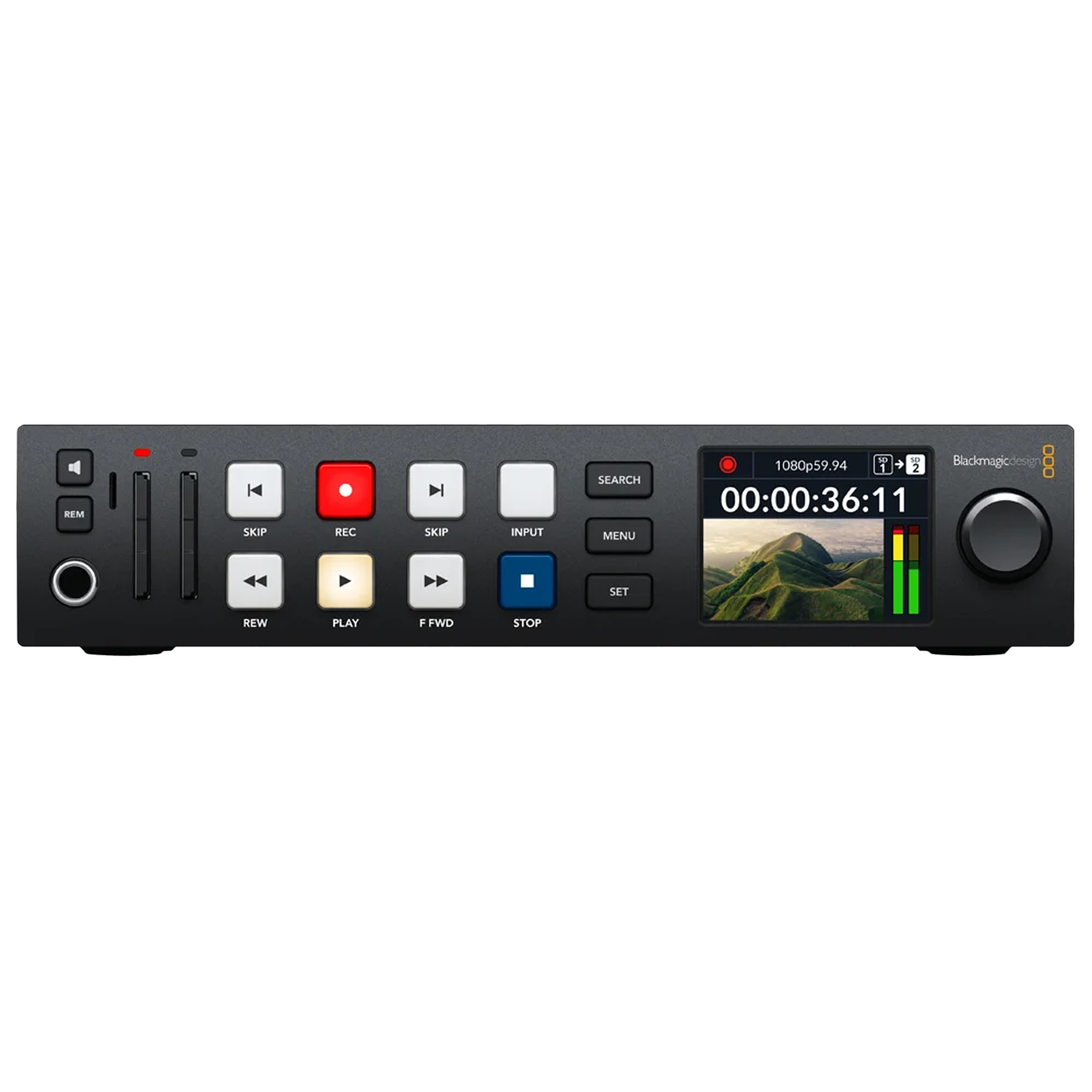

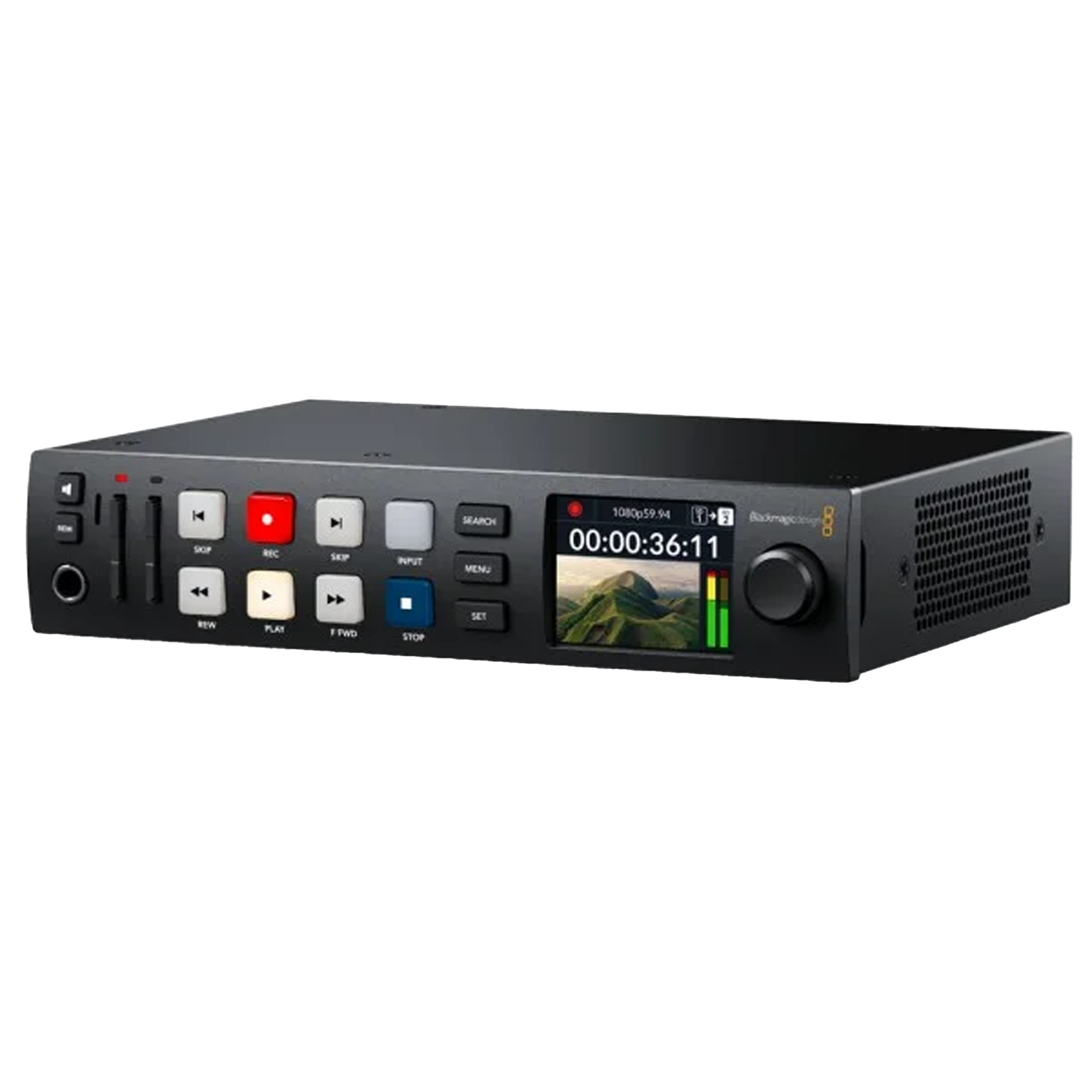

The HyperDeck Studio HD Plus offers all the features of the Mini model and more space for controls and connections. It can record and play back 6G-SDI ProRes up to Ultra HD 30p, offers SDI pass-through switching and supports HDR. The two 6G-SDI outputs can output full and key signals up to 1080p/60. There is an HDMI input and an SDI monitoring output with overlays. The keypad on the front panel transmits via RS-422 via the remote output. DC power is supplied via XLR connections. The front panel includes transport buttons, a headphone jack and a built-in speaker.
Main features
- 6G-SDI inputs and outputs
- 2x HDMI video outputs
- SDI monitor output
- SDI rate: 270 Mbit/s, 1.5G, 3G, 6G, 8G
- 1x 2.2-inch LCD
- Supports ProRes recordings and HDR
- 1x 5-pin XLR audio input and output
- 1x USB-C
Scope of delivery
- 1x HyperDeck Studio HD Plus
Main features
- 6G-SDI inputs and outputs
- 2x HDMI video outputs
- SDI monitor output
- SDI rate: 270 Mbit/s, 1.5G, 3G, 6G, 8G
- 1x 2.2-inch LCD
- Supports ProRes recordings and HDR
- 1x 5-pin XLR audio input and output
- 1x USB-C
Scope of delivery
- 1x HyperDeck Studio HD Plus
Manufacturer "Blackmagic Design"
