Crystal Video CVW Aurora
Skip image gallery
Picture similar to product
4K HDR Wireless Transmission up to 500 m
Product number:
000138342
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Aurora"

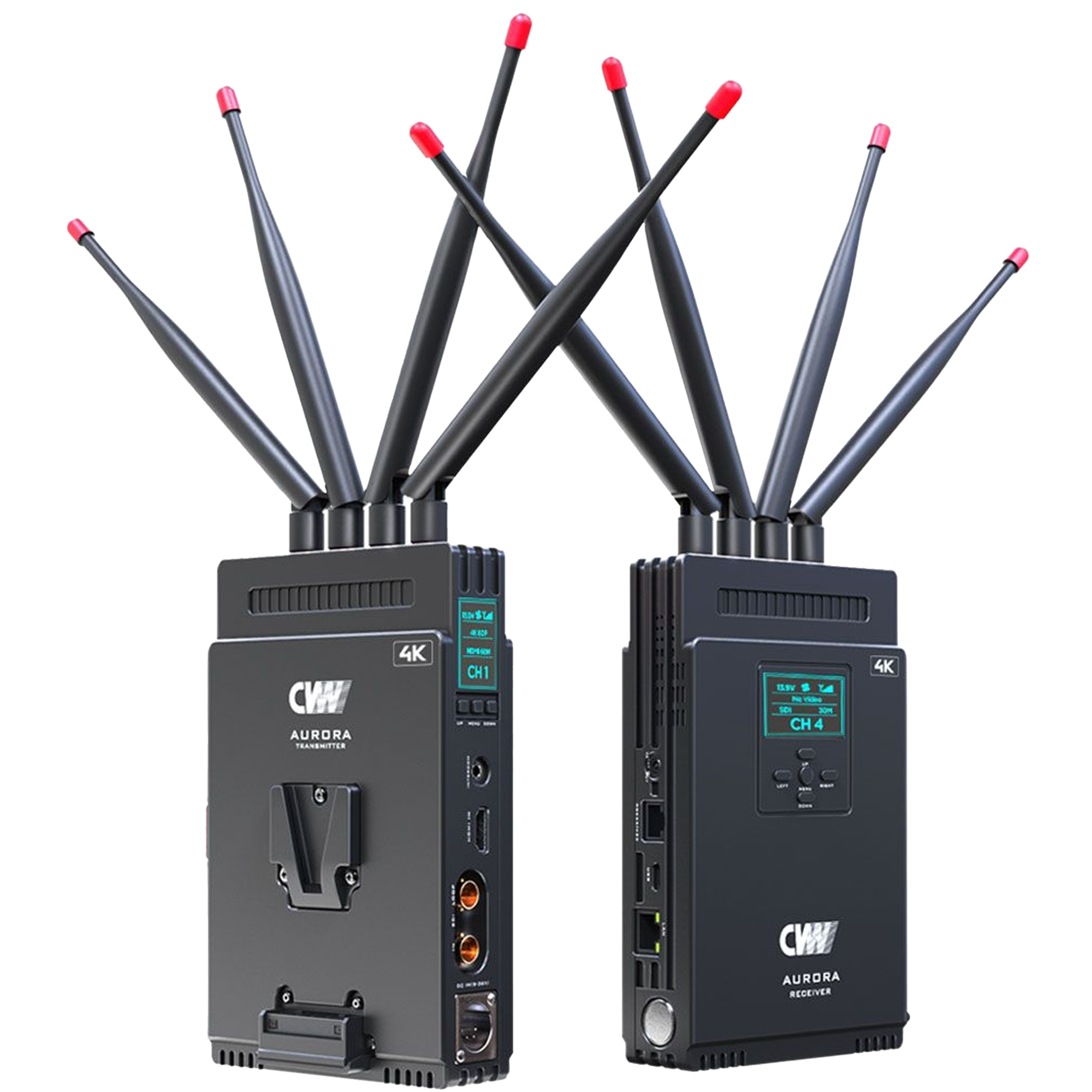

The CVW Aurora is a professional Ultra HD wireless video transmission system designed for broadcast, film, and live production. It supports 4K HDR signals with 10-bit 4:2:2 color sampling and provides transmission over distances of up to 500 m (line of sight) with a latency of 50 – 70 ms. Equipped with 12G-SDI and HDMI interfaces, the system also offers RS232/RS422 control for PTZ cameras. Operating in the 5.1 – 5.8 GHz frequency band with 40 MHz bandwidth, Aurora features four selectable channels and automatic channel scanning for optimal signal stability. Both transmitter and receiver use durable metal housings with integrated V-Mount battery plates.
Main Features:
- 12G-SDI and HDMI interfaces
- Transmission range up to 500 m (line of sight)
- Latency: 50 – 70 ms
- 4K HDR video with 10-bit 4:2:2 color sampling
- Supports Timecode, Intercom and Tally signals
- Automatic channel scanning with manual override
- Frequency range: 5.1 – 5.8 GHz, 40 MHz bandwidth
- 4 available channels with LED indicator
- Supported formats: 4096×2160 p / 3840×2160 p / 1080 p / 1080 i / 720 p
- Audio format: AAC
- RS232/RS422 control for PTZ cameras
- Integrated V-Mount battery mount
- Metal housing with plastic-coated antennas
- 3/8" mounting threads on underside
- USB-C port for firmware updates
Included:
- 1× Transport case with custom foam insert
- 1× Transmitter (with 4 antennas)
- 1× Receiver (with 4 antennas)
- 2× Spare antennas
- 2× SDI cables
- 2× Adapter cables (D-Tap male to 4-pin XLR female)
- 1× Power supply (4-pin XLR male)
