Crystal Video CVW Beamlink Duo Plus
Skip image gallery
Picture similar to product
2-Camera Wireless Video Link up to 1000 m
Product number:
000138344
EAN:
764595789312
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Beamlink Duo Plus"

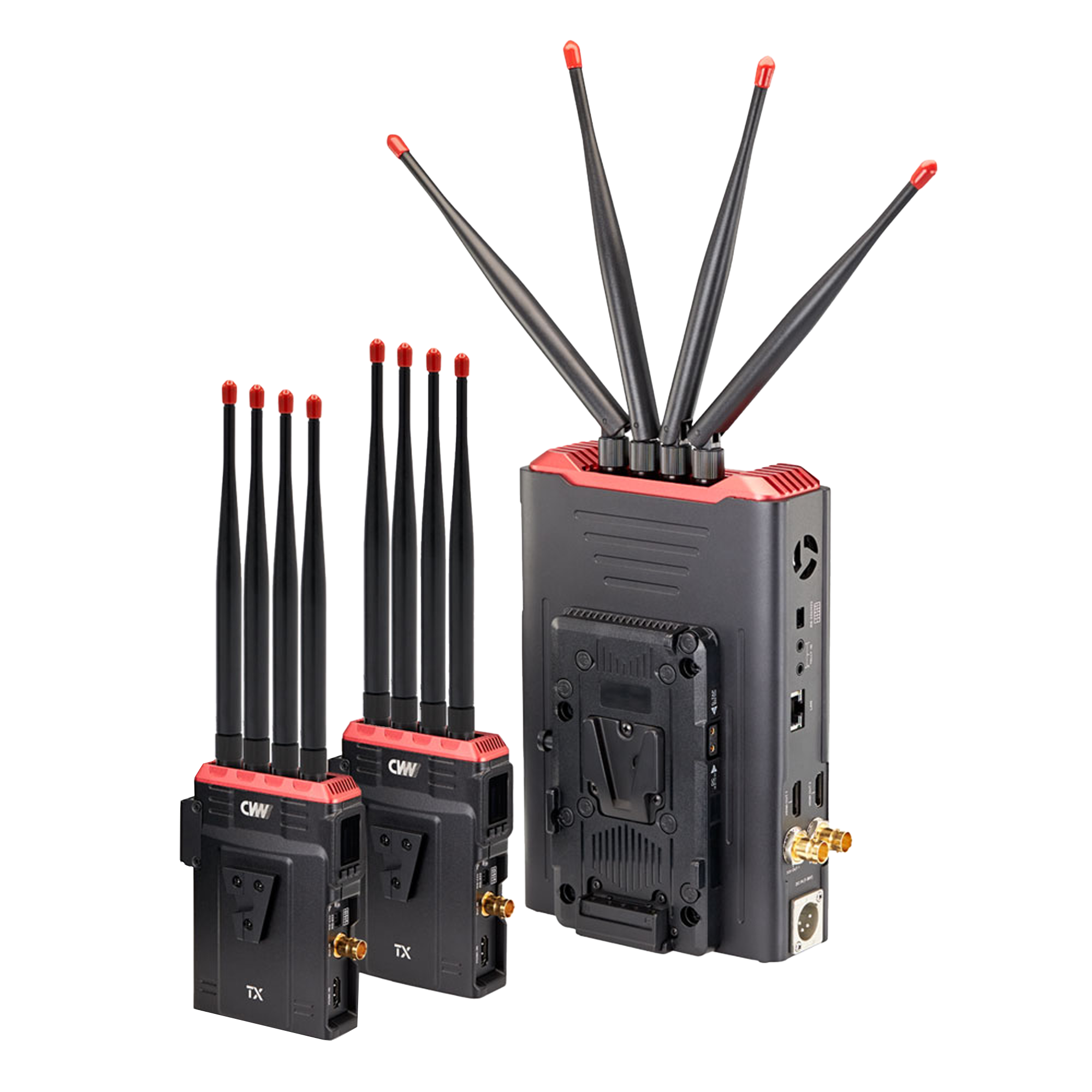

The CVW Beamlink Duo Plus is a professional wireless video transmission system designed for broadcast, live production, and film use. It transmits uncompressed Full HD signals with 10-bit 4:2:2 color depth over distances of up to 1000 m (line of sight) with a latency of around 70 ms. The set includes two transmitters and one receiver, supporting SDI and HDMI connections, timecode, tally, and PTZ camera control via a combined RS232/RS422 interface.
Using H.265 encoding and AES128/256 encryption, the system ensures efficient, secure, and color-accurate transmission. Built-in channel scanning continuously monitors signal quality, displaying strength and automatically selecting the optimal channel. Both transmitter and receiver feature durable metal housings, V-Mount battery plates, and threaded mounting points for flexible studio or field use.
Main Features:
- 2 transmitters and 1 receiver
- Transmission range up to 1000 m (line of sight)
- Latency: approx. 70 ms
- Uncompressed Full HD (10-bit 4:2:2)
- H.265 encoding/decodin
- AES128/256 encryption
- Supports timecode, tally, and PTZ control
- Channel scanning with signal strength display
- DFS support for outdoor operation
- Frequency range: 5.1 – 5.8 GHz / 40 MHz bandwidth
- Video formats: 1080p, 1080i, 720p
- Audio formats: PCM, MPEG-2
- ¼" and ?" mounting threads on receiver
- Integrated V-Mount battery plates
- Metal housing with plastic-coated antennas

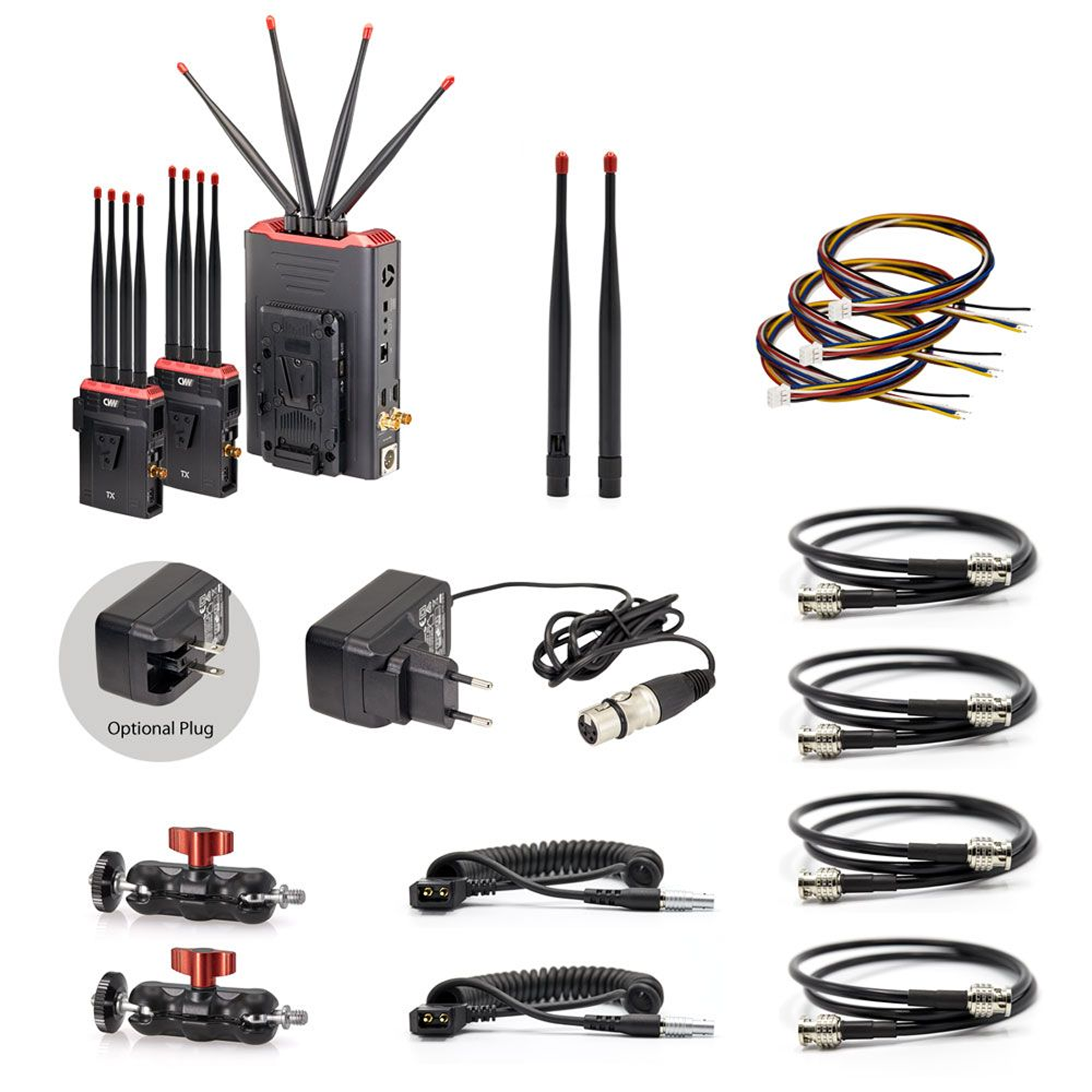

Included:
- 1× Carrying case with custom foam insert
- 2× Transmitters (each with 4 antennas)
- 1× Receiver (with 4 antennas)
- 2× Spare antennas
- 1× Power supply (4-pin XLR, 140 cm)
- 4× BNC cables (80 cm)
- 2× DC adapter cables (D-Tap to 2-pin Lemo compatible)
- 3× RS232/RS422 adapter cables (6-pin, 50 cm)
- 2× Mounting brackets for transmitters
