Crystal Video CVW Beamlink Quad Plus
Skip image gallery
Picture similar to product
4-Camera Wireless Video Link up to 800 m
Product number:
000138343
EAN:
764595789329
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Beamlink Quad Plus"

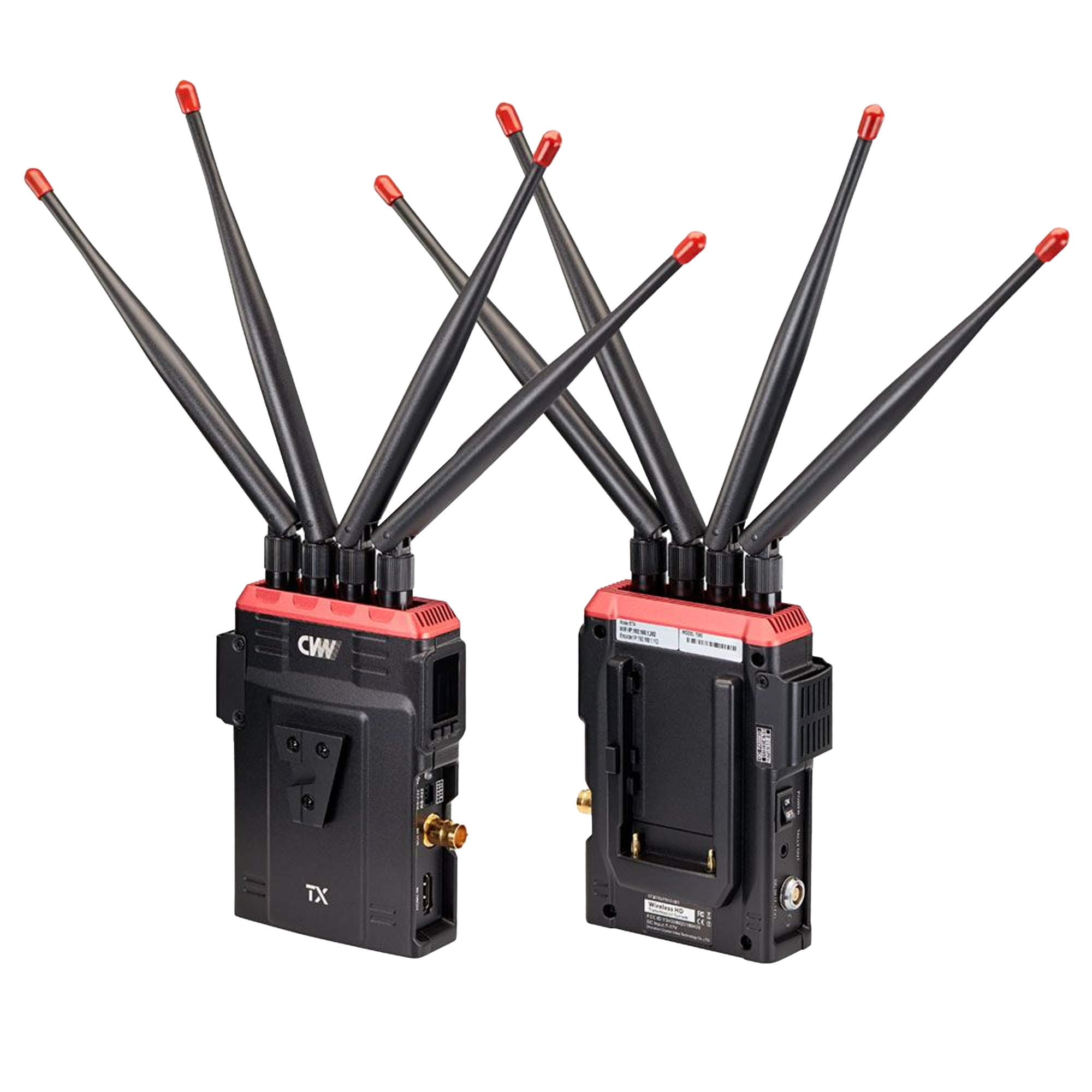

The CVW Beamlink Quad Plus is a professional wireless video transmission system designed for broadcast and live production applications. It supports uncompressed Full HD video at 10-bit 4:2:2 color sampling over distances up to 800 m (line of sight) with a latency of 70 ms under ideal conditions. The set includes four transmitters and one receiver, providing SDI and HDMI interfaces, timecode and tally support, and a combined RS232/RS422 port for PTZ camera control.

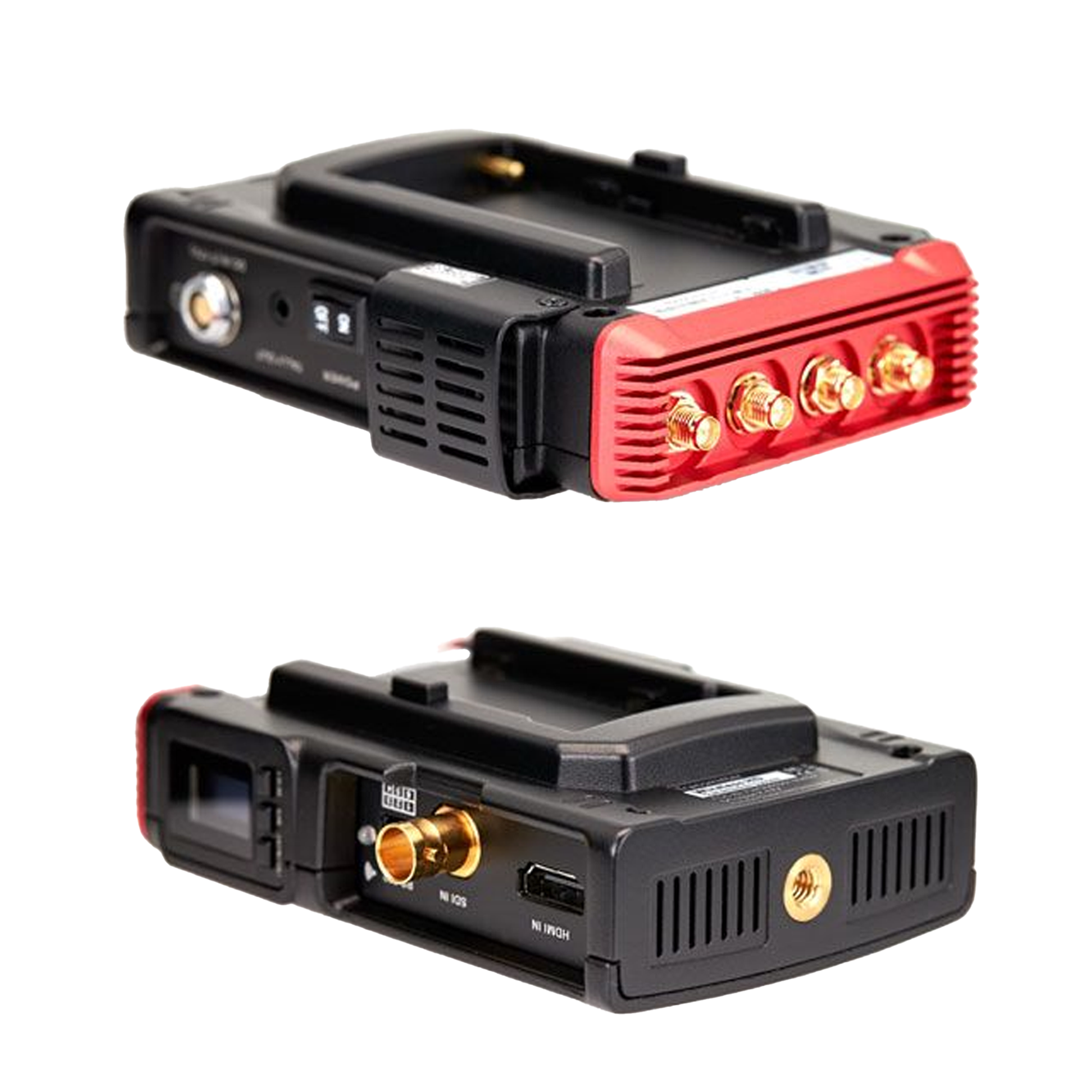

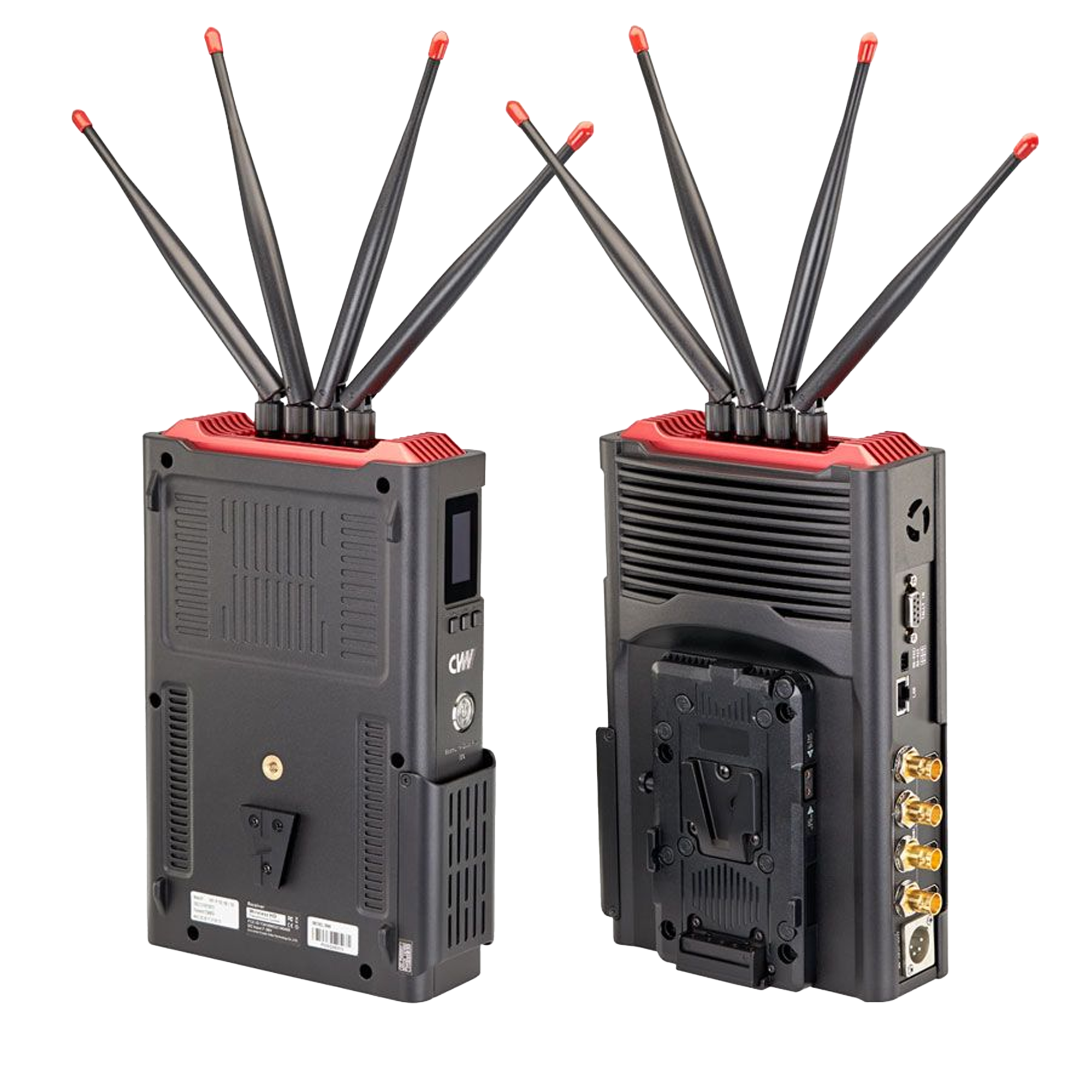

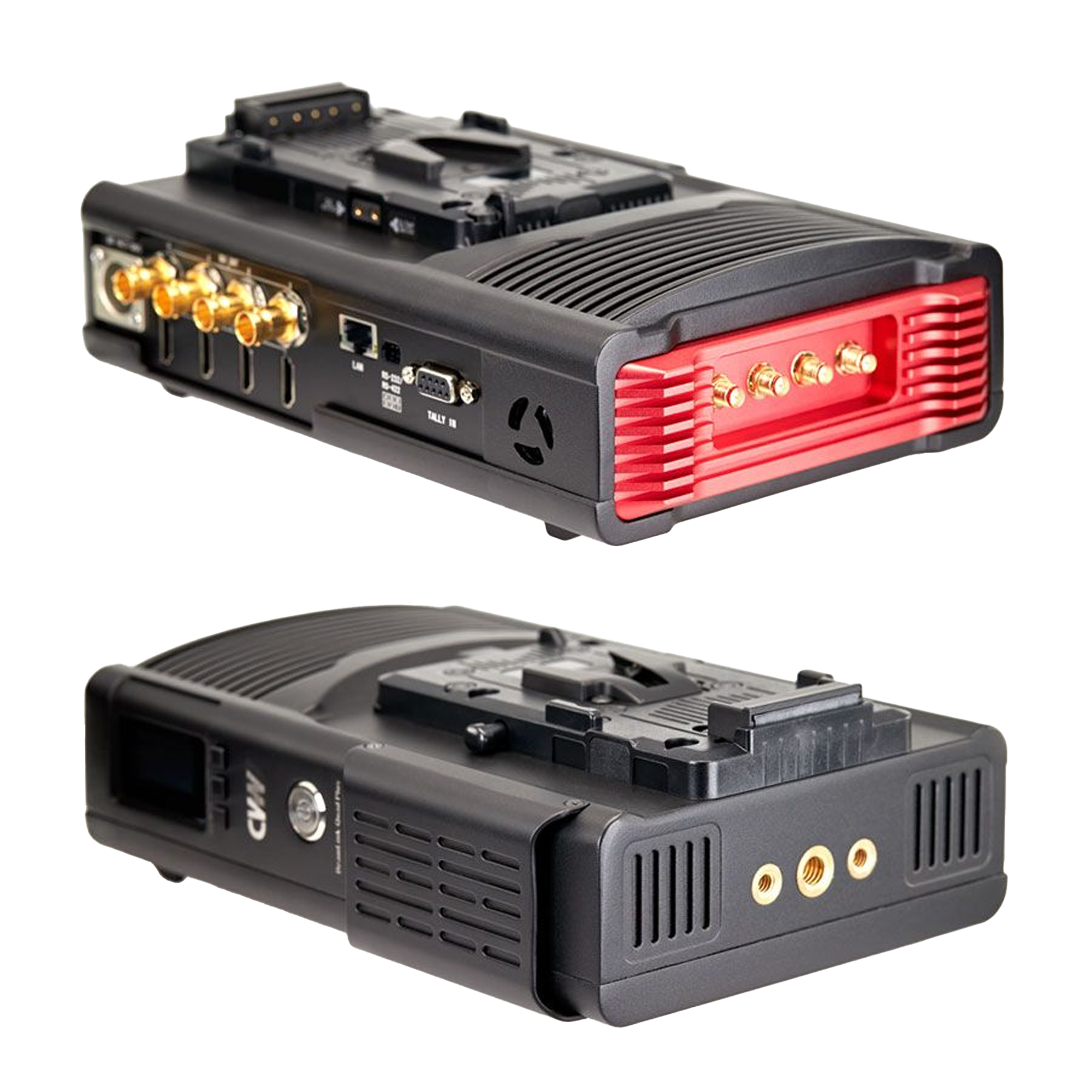

Using H.265 encoding, the system delivers efficient transmission with enhanced color depth. Channel scanning automatically selects the strongest signal channel for stable performance. Both transmitter and receiver feature metal housings with V-Mount battery plates and are suitable for outdoor use.
Main Features:
- 4 transmitters and 1 receiver
- Transmission range up to 800 m (line of sight)
- Latency approx. 70 m
- Uncompressed Full HD 1080/60p (10-bit 4:2:2)
- Frequency band: 5.1 – 5.8 GHz / 40 MHz bandwidth
- Channel scanning with signal strength display
- Encoding/decoding via H.265
- Encryption: AES128/256
- Timecode and Tally support
- C-ombined RS232/RS422 PTZ control por
- DFkS support for outdoor operation
- 2 audio channels (PCM, MPEG-2)
- ¼" and ?" mounting threads on transmitter and receiver
- ntegrated V-Mount battery plate
- Metal housing with plastic-coated antennas

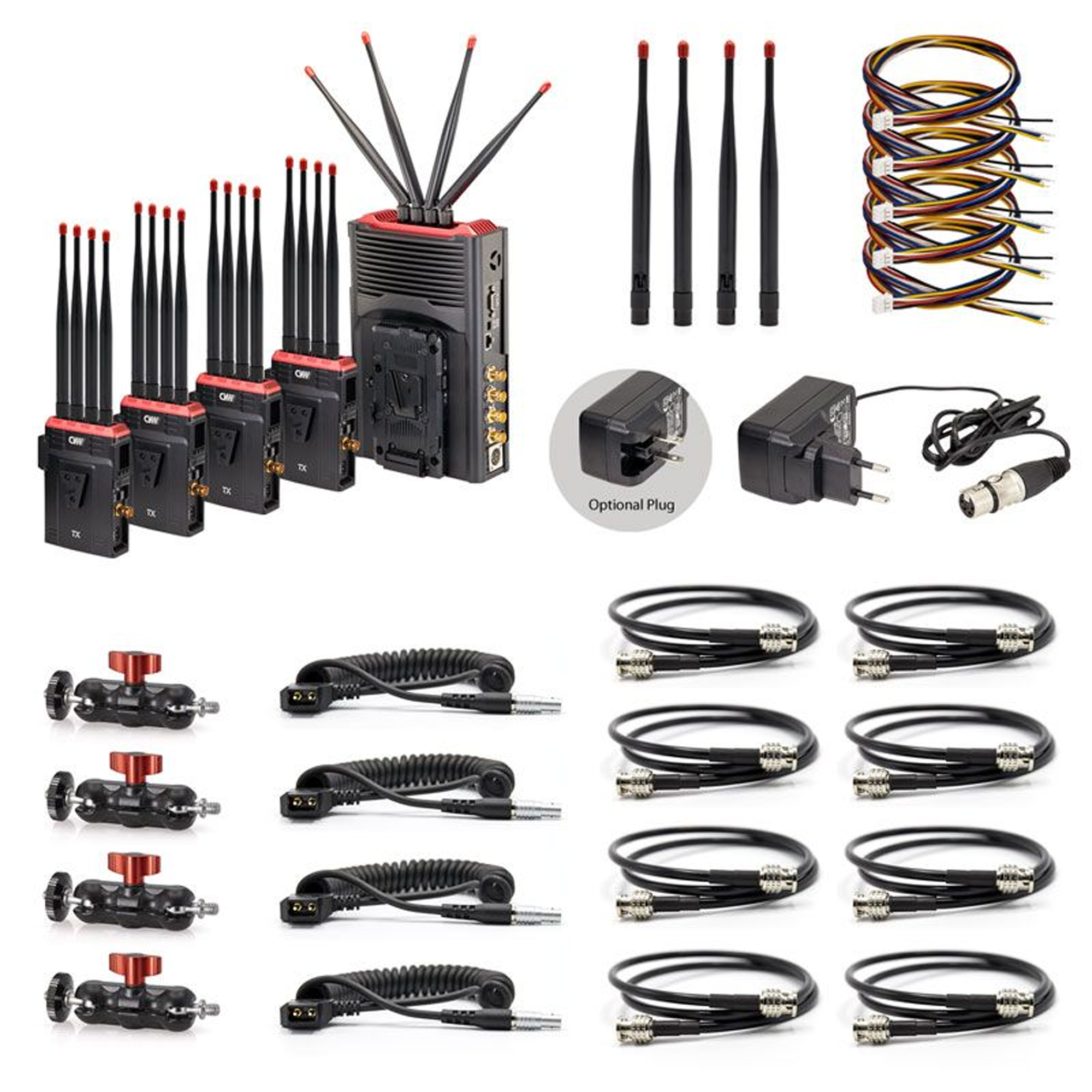

Included:

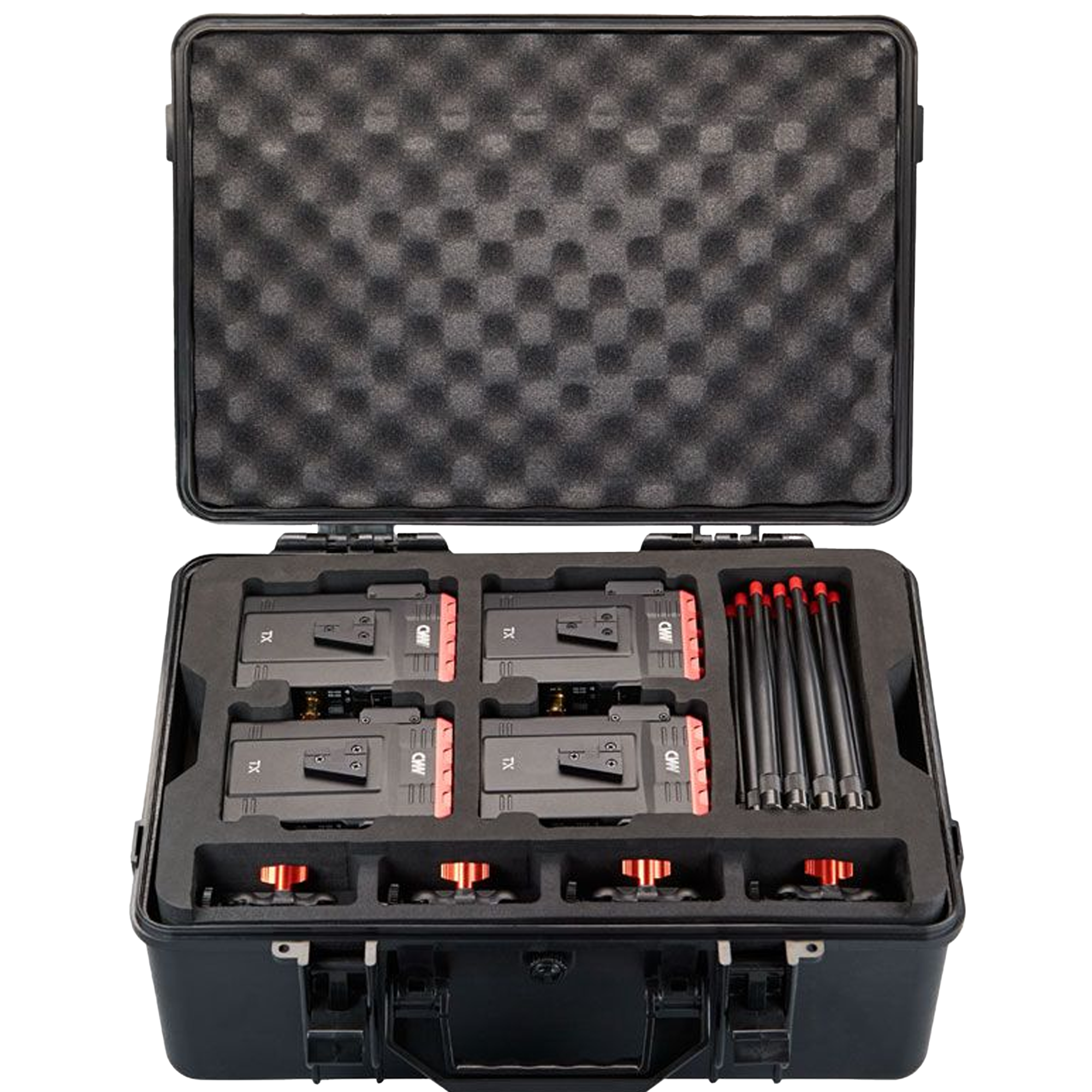

- 1× Carrying case with custom foam insert
- 4× Transmitters (each with 4 antennas)
- 1× Receiver (with 4 antennas)
- 4× Spare antennas
- 1× Power supply (4-pin XLR, 140 cm)
- 8× BNC cables (80 cm)
- 4× DC adapter cables (D-Tap to 2-pin Lemo compatible)
- 5× RS232/RS422 adapter cables (6-pin, 50 cm)
- 4× Mounting brackets for transmitters
