Crystal Video CVW Beamlink Ultimate
Skip image gallery
Picture similar to product
4-Camera Wireless Video & Intercom System
Product number:
000138339
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Beamlink Ultimate"

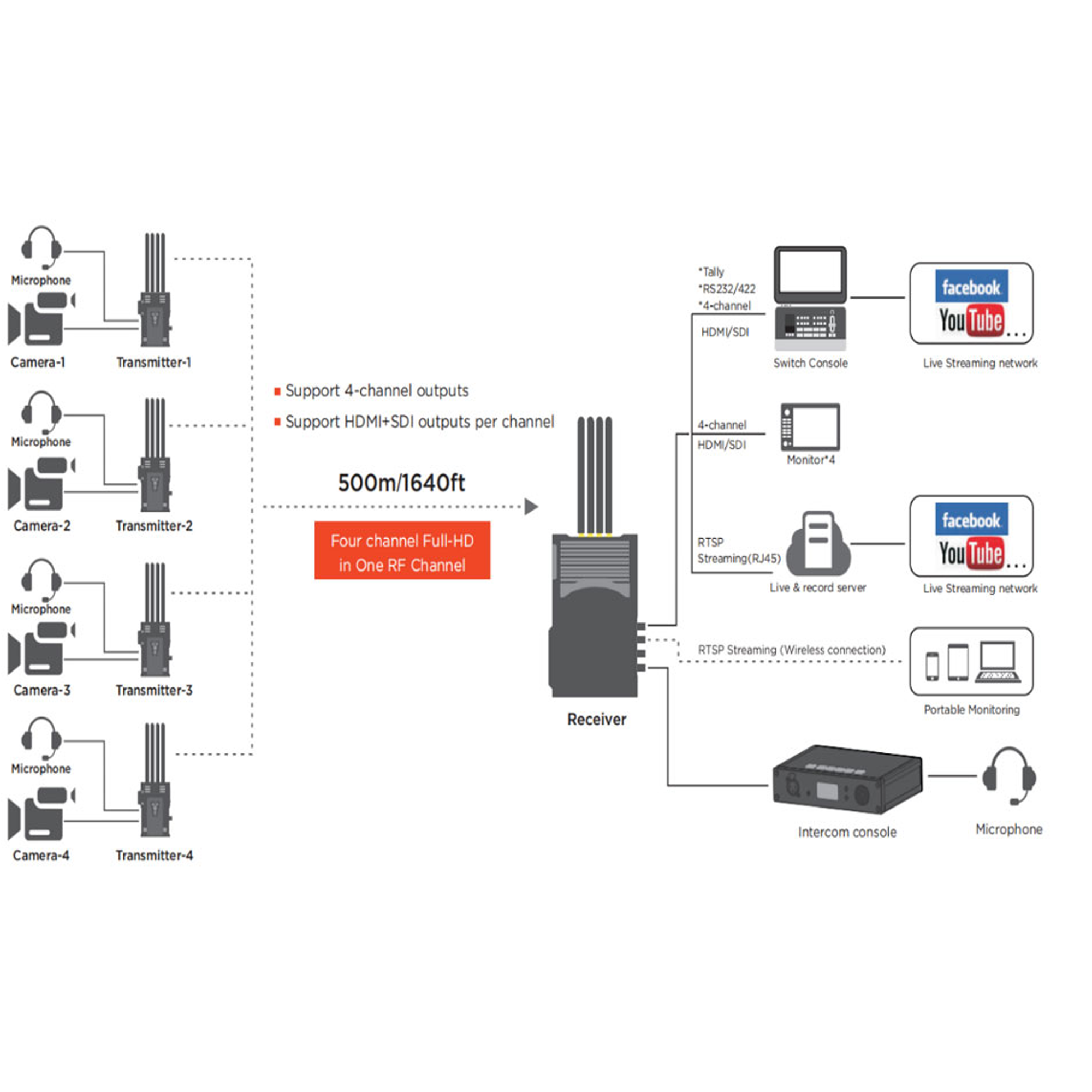

The CVW Beamlink Ultimate is a professional wireless video transmission set designed for up to four cameras operating simultaneously. It delivers Full HD video signals over distances of up to 500 m (line of sight) with a latency of only 70 ms. The system includes four transmitters, one receiver, and an integrated intercom station with four headsets featuring built-in microphones for bidirectional communication. The receiver supports RTSP streaming, and both transmitters and receiver are equipped with SDI and HDMI interfaces. Built for stable, low-latency performance, the system is ideal for live broadcasting and multi-camera production environments.
Main Features:
- Transmission range up to 500 m (line of sight)
- Supports up to 4 cameras simultaneously
- Full HD 1080p video (up to 60 fps)
- Supported video formats: 1080p / 1080i / 720p
- Audio formats: PCM, MPEG-2
- Voice Intercom Station with 4 headsets and microphones
- SDI and HDMI inputs/outputs on transmitters and receiver
- Tally signal support
- RS232/422/485 control interface
- RTSP streaming support on receiver
- Low latency (70 ms)
- Adjustable transmission quality
- Power input: 7–17 V DC, V-Mount or Sony F-Type Mount
- 4 antenna ports per unit

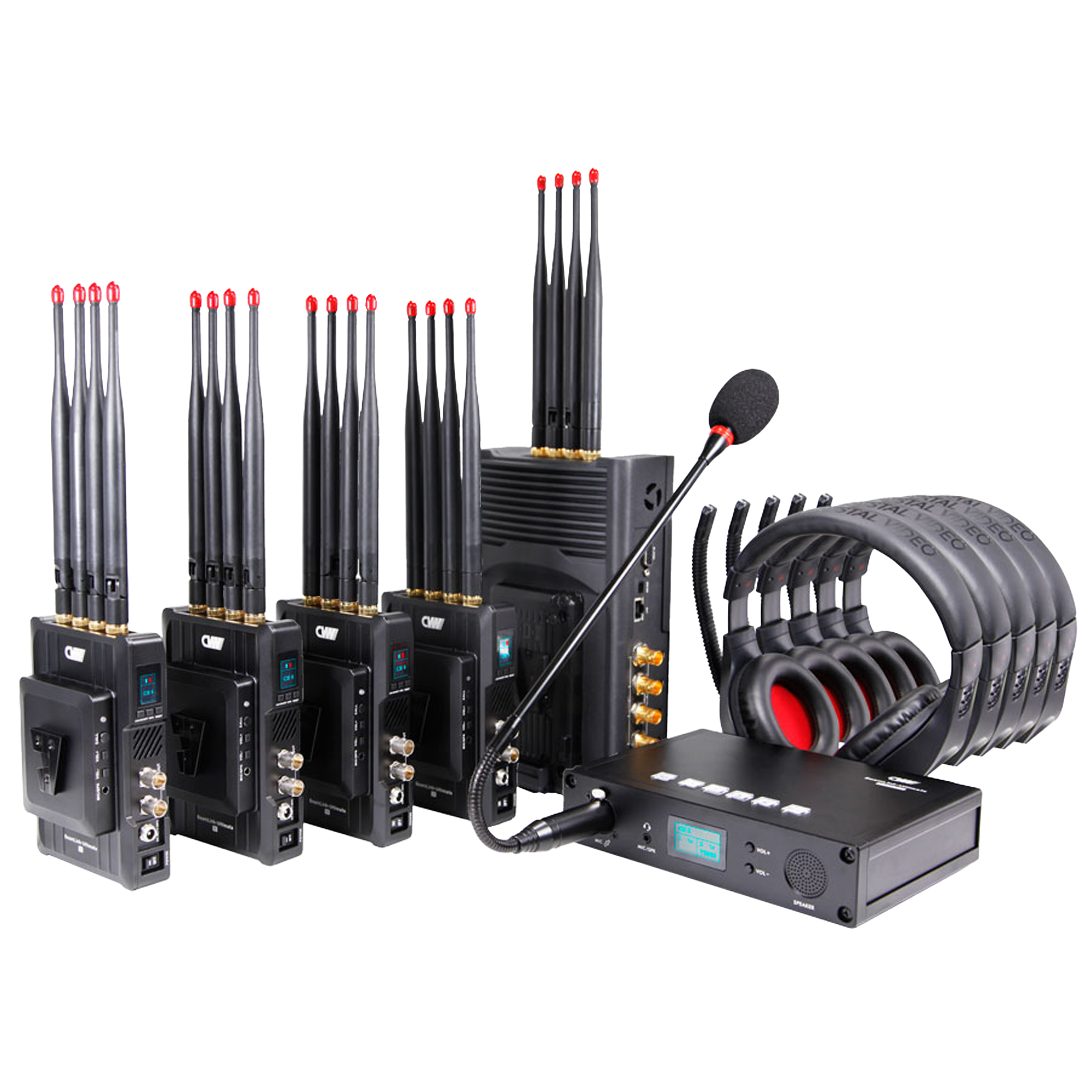

Included:
- 1× High-quality carrying case with foam interior
- 4× Transmitters (each with 4 antennas)
- 1× Receiver (with 4 antennas and metal stand base)
- 4× Headsets with integrated microphones
- 1× Voice Intercom Switch
- 1× Power supply
- 4× DC adapter cables (D-Tap to 2-pin Lemo compatible)
- 4× Adapter screws
