Crystal Video CVW Pro Vue
Skip image gallery
Picture similar to product
5.5" Monitor Link
Product number:
000138350
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro Vue"

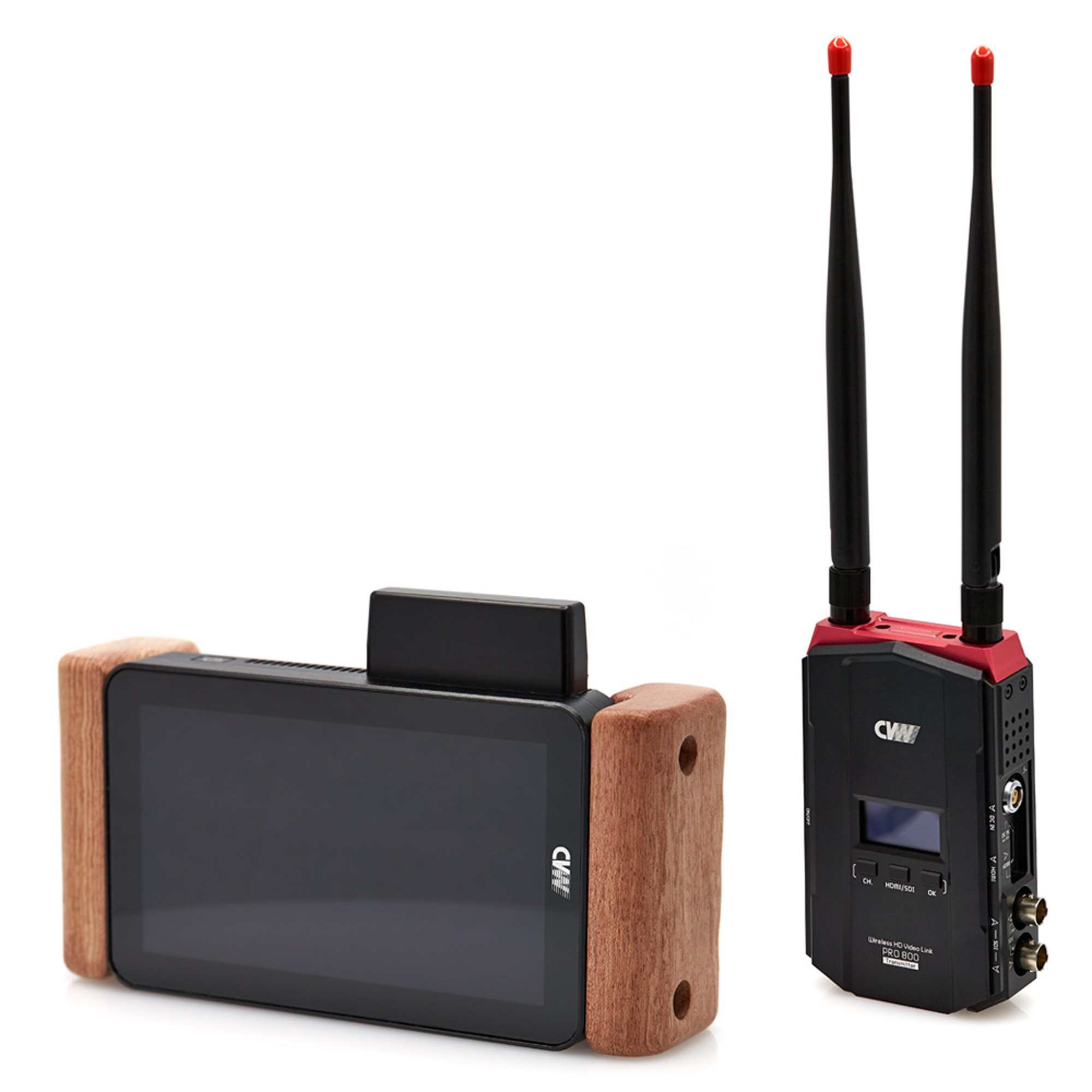

The CVW Pro Vue is a professional wireless video transmission system combining a transmitter and a 5.5" wireless monitor with a built-in receiver. It delivers Full HD 1080/60p video (10-bit 4:2:2) in real time with less than 1 ms latency over distances up to 200 m (line of sight). The IPS monitor features a 1920×1080 resolution, HDR display, 3D LUT support, and advanced monitoring tools such as waveform, histogram, zebra, audio meter, and false color.
A unique Follow Focus Dashboard displays focus, iris, and zoom data directly on the monitor (compatible with Movcam systems). The transmitter offers HDMI and SDI inputs, SDI loop-out, and manual channel selection. Both units are made of durable metal and powered via D-Tap or compatible NP-F/V-Mount battery systems, making the Pro Vue ideal for field monitoring and professional film production.
Main Features:
- 5.5" wireless monitor with integrated receiver
- Zero-delay transmission (<1 ms latency)
- Full HD 1080/60p (10-bit 4:2:2
- Follow Focus Dashboard (focus, iris, zoom display)
- HDR and 3D LUT support
- Monitoring tools: waveform, histogram, zebra, audio meter, RGB histogram, false color, anamorphic modes
- Frequency band: 5 GHz / 40 MHz bandwidth
- 4 selectable channels (manual control
- HDMI and SDI inputs, SDI loop output
- Power: 7–36 V DC / D-Tap / NP-F or V-Mount
- Operating temperature: -10 to +50 °C
- Rugged metal housing

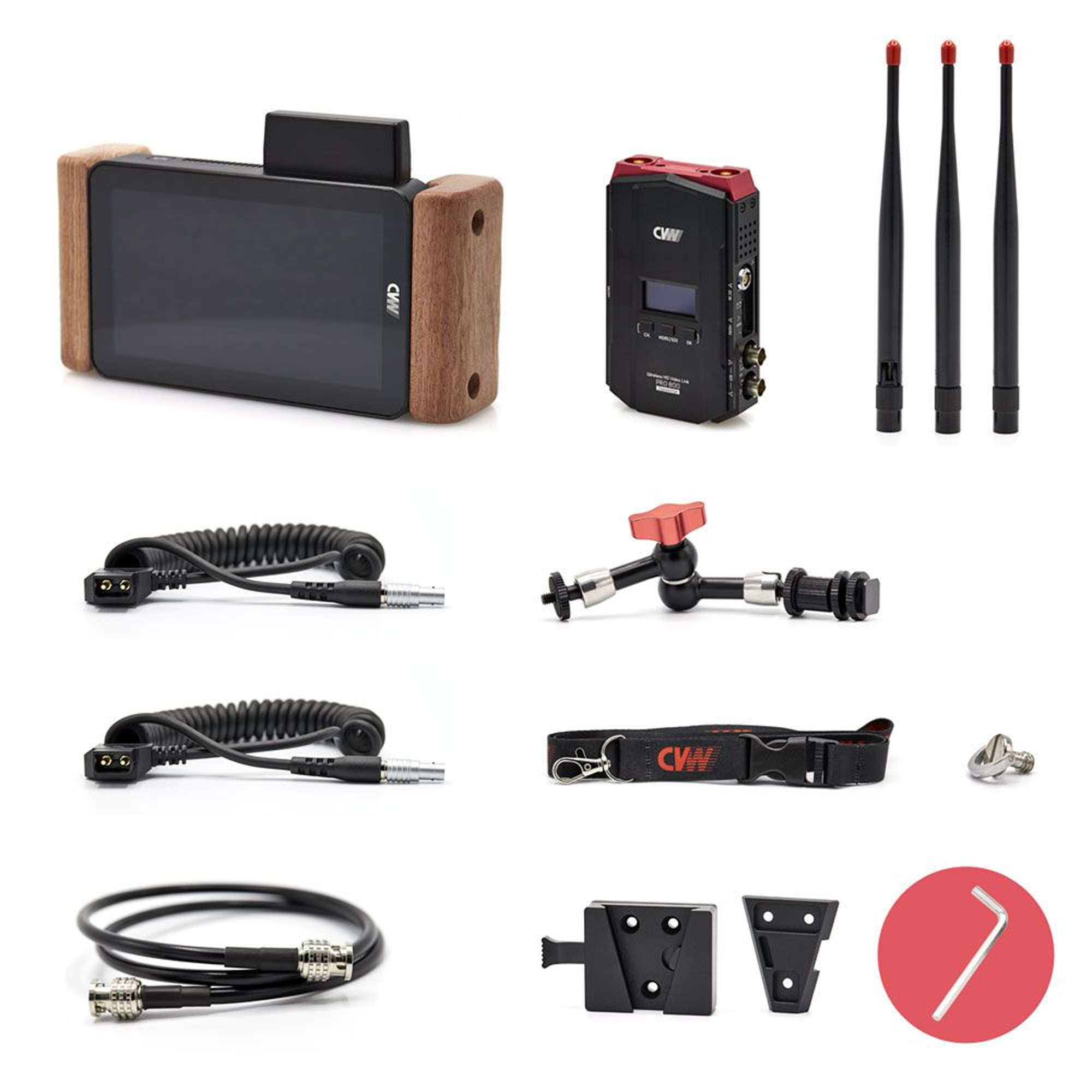

Included:
- 1× Transmitter
- 1× Wireless monitor (with NP-F mount and integrated antennas)
- 3× Antennas (including spare)
- 1× BNC cable (80 cm, SDI link)
- 1× DC adapter cable for transmitter (D-Tap to 2-pin Lemo-compatible)
- 1× DC adapter cable for monitor (D-Tap to 6-pin Lemo-compatible)
- 1× Adjustable magic arm with cold shoe mount (170 mm)
- 1× V-Mount adapter (for camera mounting)
- 1× Protective hard case with foam insert
A unique Follow Focus Dashboard displays focus, iris, and zoom data directly on the monitor (compatible with Movcam systems). The transmitter offers HDMI and SDI inputs, SDI loop-out, and manual channel selection. Both units are made of durable metal and powered via D-Tap or compatible NP-F/V-Mount battery systems, making the Pro Vue ideal for field monitoring and professional film production.
Main Features:
- 5.5" wireless monitor with integrated receiver
- Zero-delay transmission (<1 ms latency)
- Full HD 1080/60p (10-bit 4:2:2
- Follow Focus Dashboard (focus, iris, zoom display)
- HDR and 3D LUT support
- Monitoring tools: waveform, histogram, zebra, audio meter, RGB histogram, false color, anamorphic modes
- Frequency band: 5 GHz / 40 MHz bandwidth
- 4 selectable channels (manual control
- HDMI and SDI inputs, SDI loop output
- Power: 7–36 V DC / D-Tap / NP-F or V-Mount
- Operating temperature: -10 to +50 °C
- Rugged metal housing
Included:
- 1× Transmitter
- 1× Wireless monitor (with NP-F mount and integrated antennas)
- 3× Antennas (including spare)
- 1× BNC cable (80 cm, SDI link)
- 1× DC adapter cable for transmitter (D-Tap to 2-pin Lemo-compatible)
- 1× DC adapter cable for monitor (D-Tap to 6-pin Lemo-compatible)
- 1× Adjustable magic arm with cold shoe mount (170 mm)
- 1× V-Mount adapter (for camera mounting)
- 1× Protective hard case with foam insert
