Crystal Video CVW Pro Z
Skip image gallery
Picture similar to product
800 m Zero-Delay Video Link
Product number:
000138351
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro Z"

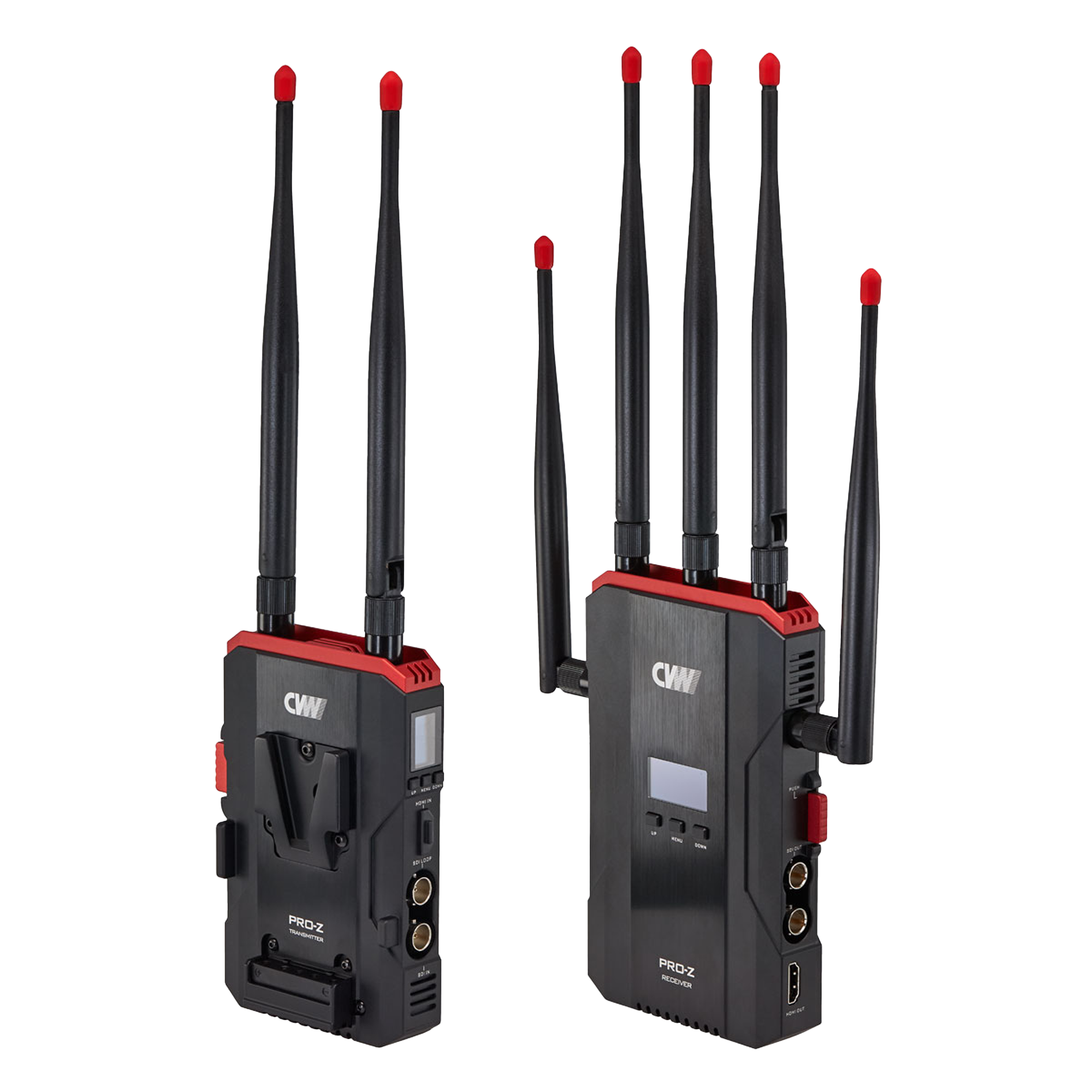

The CVW Pro Z is a professional zero-delay wireless video system designed for real-time HD transmission over distances up to 800 m (line of sight). It delivers uncompressed Full HD 1080/60p (10-bit 4:2:2) signals via SDI or HDMI with a latency below 1 ms.
Operating in the 5 GHz band (5.1 – 5.9 GHz, 40 MHz bandwidth), it offers four manually selectable channels with LED status display. Smart Cooling activates the internal fan only when necessary, ensuring quiet operation in studio environments. Both transmitter and receiver feature integrated V-Mount battery plates and lightweight aluminum housings, ideal for on-camera use in film and broadcast applications.
Main Features:
- Zero-delay transmission (< 1 ms)
- Range up to 800 m (line of sight)
- Full HD 1080/60p (10-bit 4:2:2 uncompressed)
- 3G-SDI In/Loop-Out and HDMI In/Out
- Frequency band: 5.1 – 5.9 GHz / 40 MHz bandwidth
- Channel Scanning and Smart Cooling fan control
- 4 manual channels with LED indication
- Audio formats: PCM, DTS-HD, Dolby True HD
- Timecode support

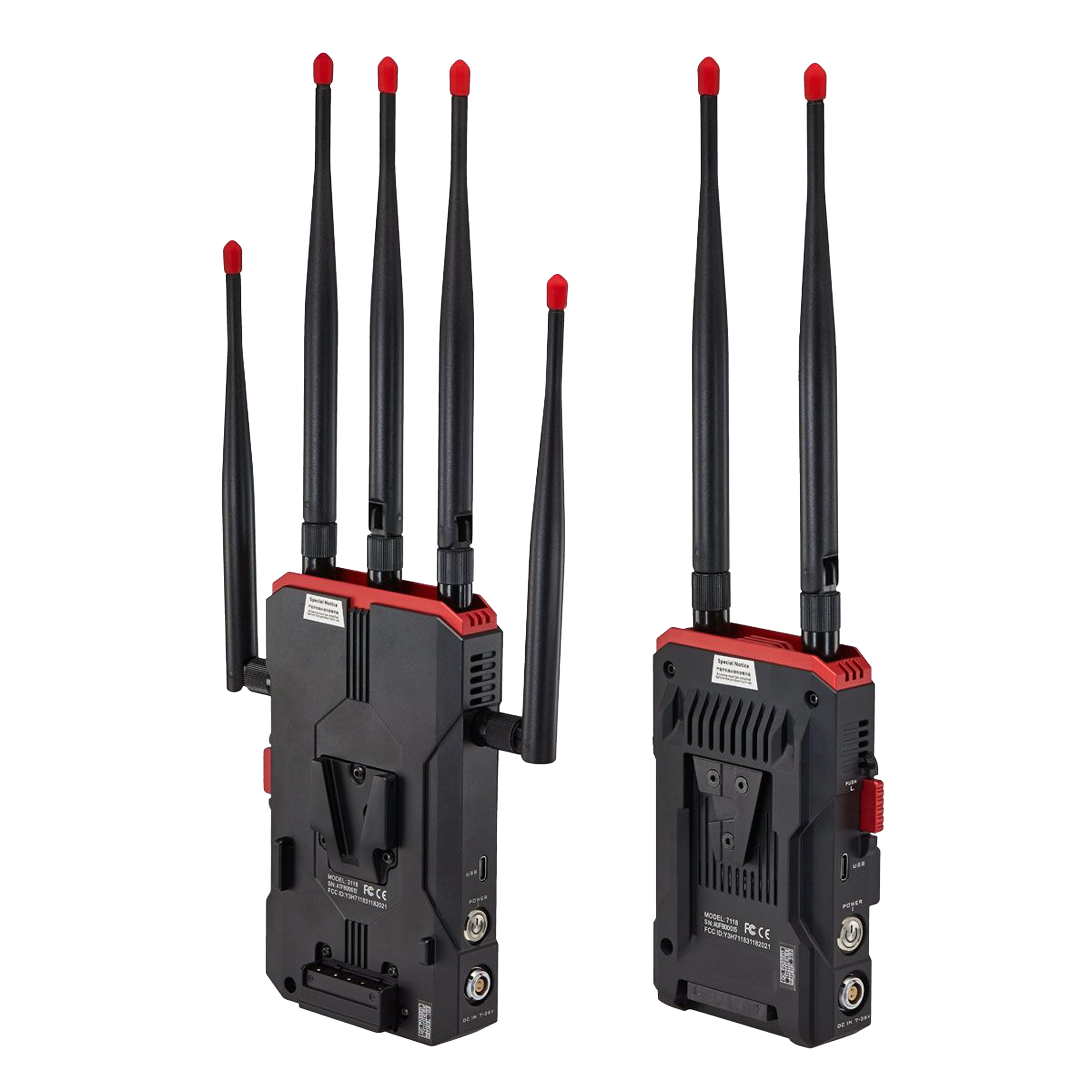

- Integrated V-Mount battery plates (TX & RX)
- Power via D-Tap (12 W TX / 8 W RX)
- Lightweight aluminum housing with metal/plastic antennas

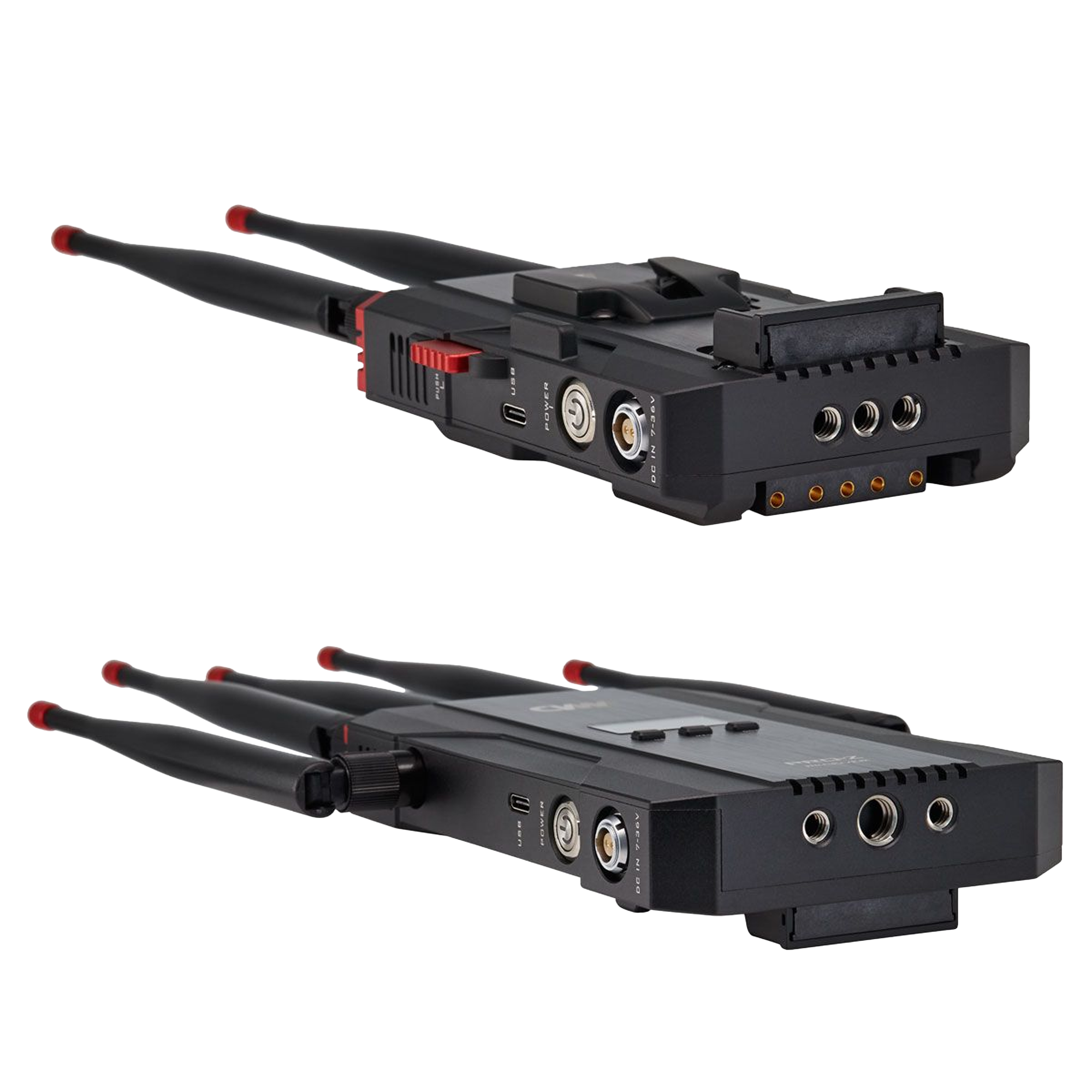

- Multiple mounting points (¼" and ?" threads, cold-shoe)

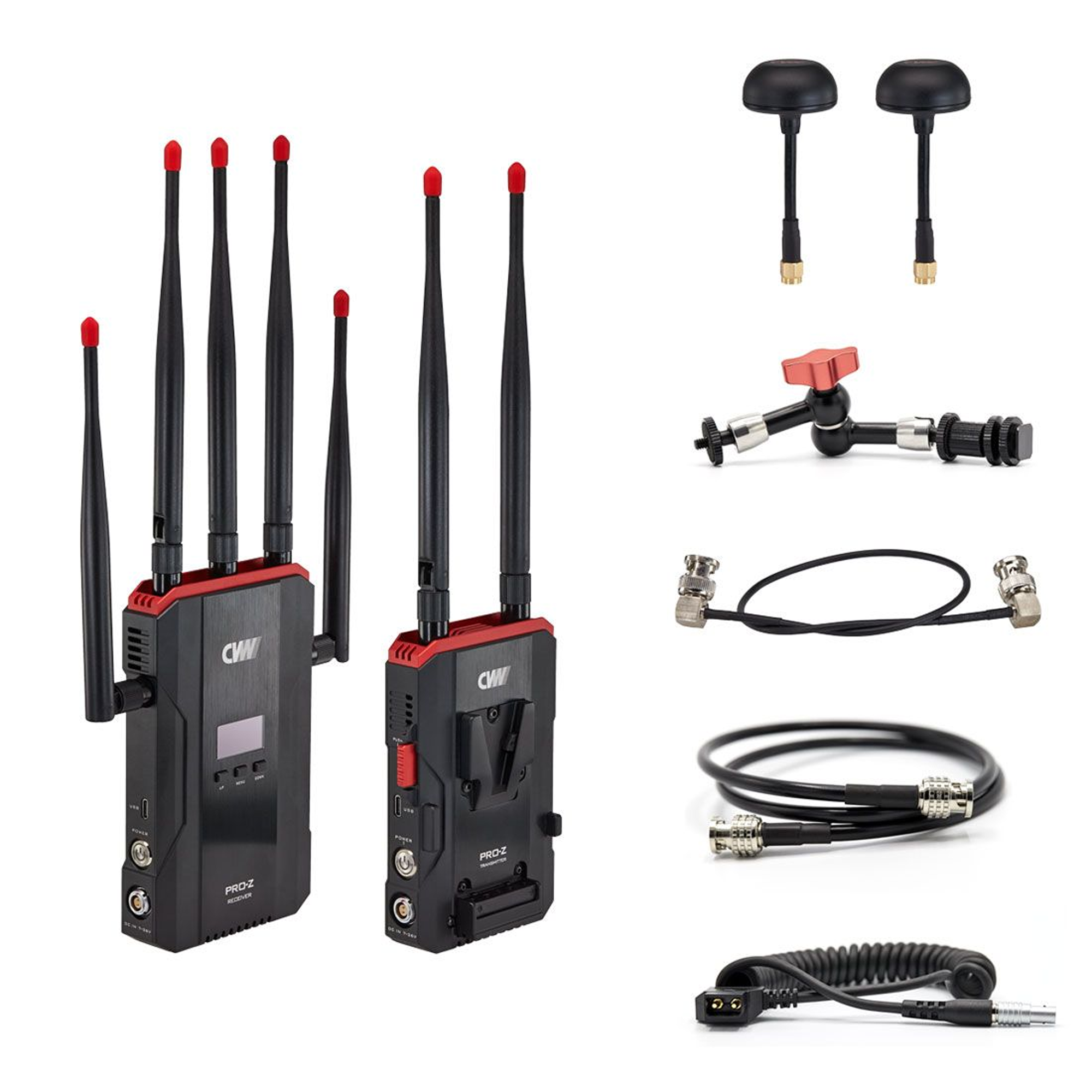

Included:
- 1× Transmitter (with 2 antennas)
- 1× Receiver (with 5 antennas)
- 2× Mushroom antennas
- 1× BNC cable (80 cm, straight)
- 1× BNC cable (40 cm, angled)
- 1× DC adapter cable (D-Tap to 2-pin Lemo)
- 1× Articulating arm with cold-shoe mount

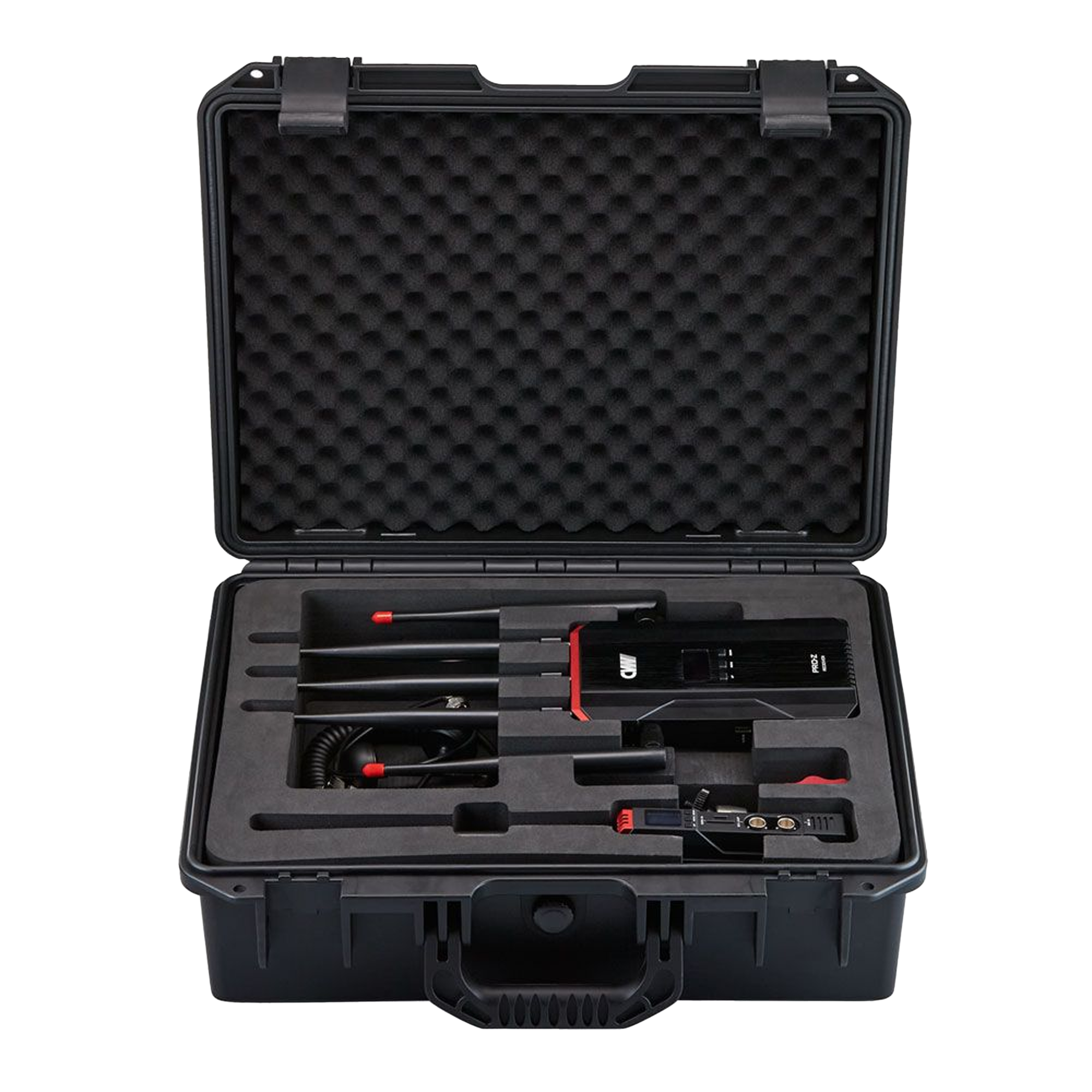

- 1× Protective case with foam insert
