Crystal Video CVW Pro200 Set 2R
Skip image gallery
Picture similar to product
Zero-Delay Wireless Video System with 2 Receivers
Product number:
000138354
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro200 Set 2R"
The CVW Pro200 Set 2R is a professional zero-delay wireless video system designed for real-time HD transmission with one transmitter and two receivers — ideal for director monitoring or multi-receiver setups.
It delivers uncompressed Full HD 1080/60p (10-bit 4:2:2) over 3G-SDI and HDMI, with a latency below 1 ms and a range of up to 200 m (line of sight).
Operating in the 5 GHz band (5.17 – 5.795 GHz) with a 40 MHz bandwidth, the system offers four manually selectable channels indicated by LEDs.
Both transmitter and receivers feature metal housings, integrated Sony NP-F battery plates, and D-Tap power support, making the Pro200 Set 2R ideal for film productions, live broadcast and multi-camera workflows.
Main Features:
- Zero-delay (< 1 ms latency)
- Up to 200 m range (line of sight)
- Full HD 1080/60p (10-bit 4:2:2 uncompressed)
- 3G-SDI & HDMI inputs/outputs
- 5 GHz band / 40 MHz bandwidth
- 4 manual channels with LED indicator
- Audio formats: PCM, DTS-HD, Dolby True HD
- Timecode support

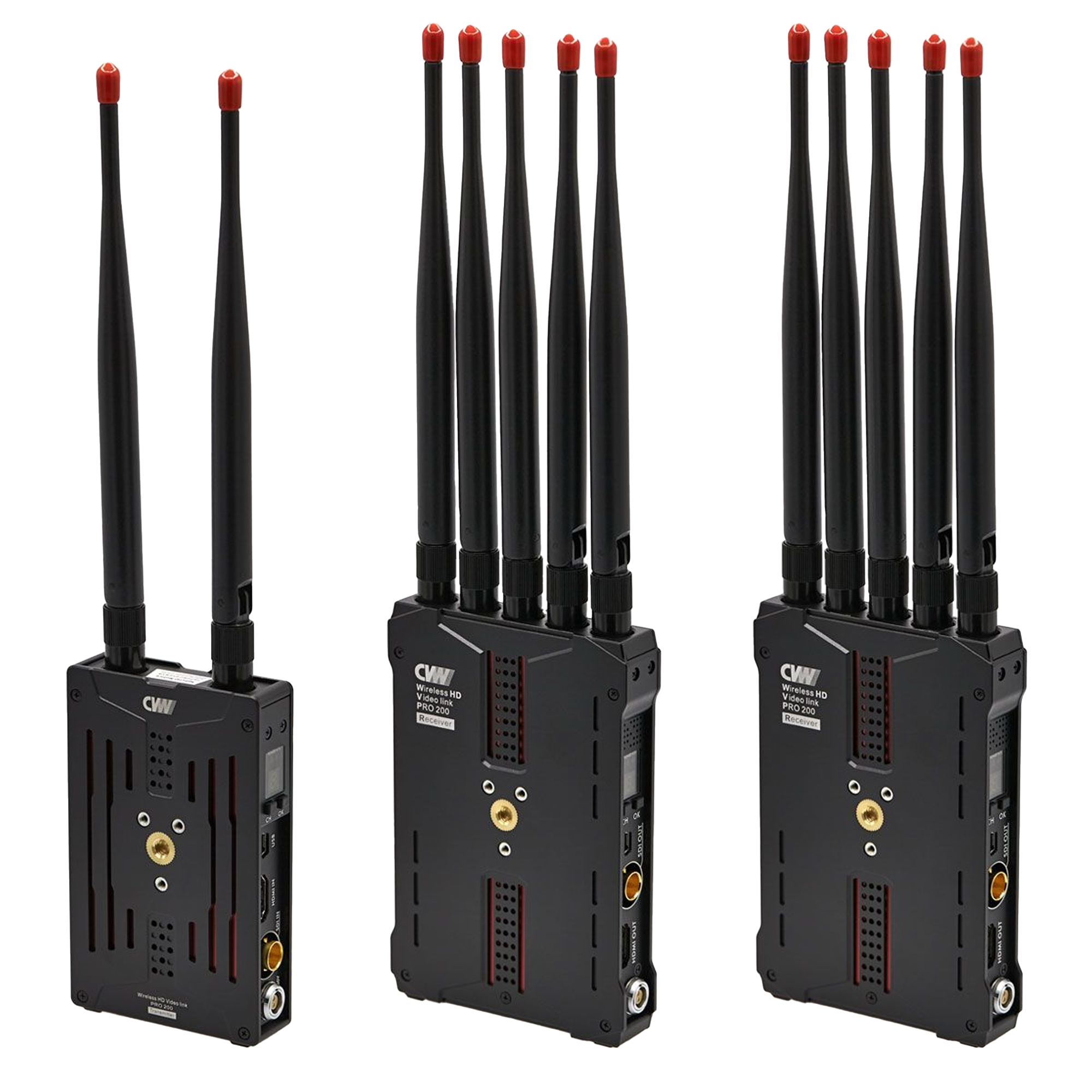

- Includes 1 transmitter + 2 receivers
- Metal housing with durable antennas

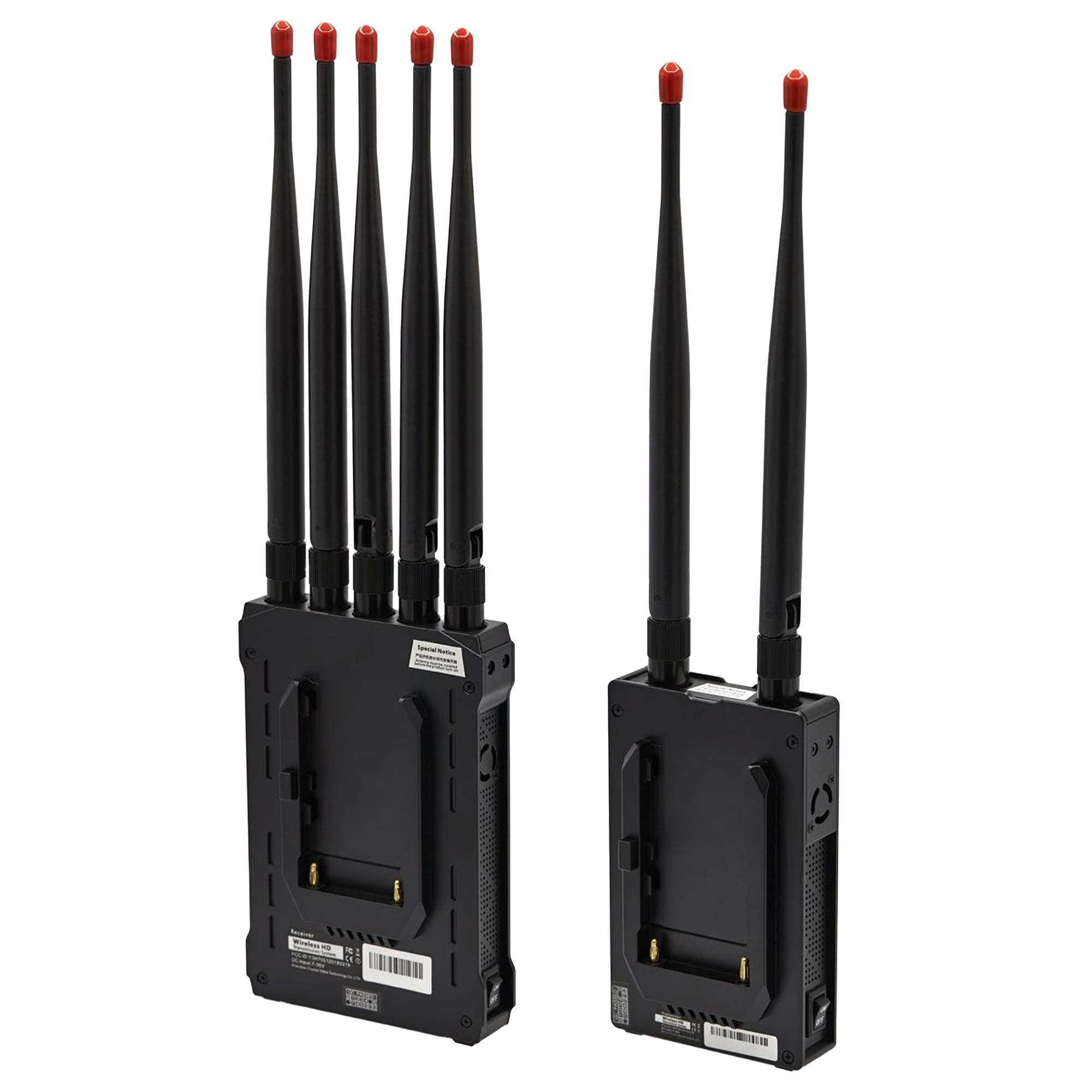

- Integrated NP-F battery mounts
- Power via D-Tap or AC adapter
Included:
- 1 × Transmitter (with 2 antennas, NP-F mount)
- 2 × Receivers (with 5 antennas each, NP-F mount)
- 17 × Antennas total
- 3 × BNC cables (80 cm)
- 1 × Power adapter
- 3 × D-Tap to Lemo adapter cables
- 3 × Hot shoe mounts
- 2 × V-Mount adapters

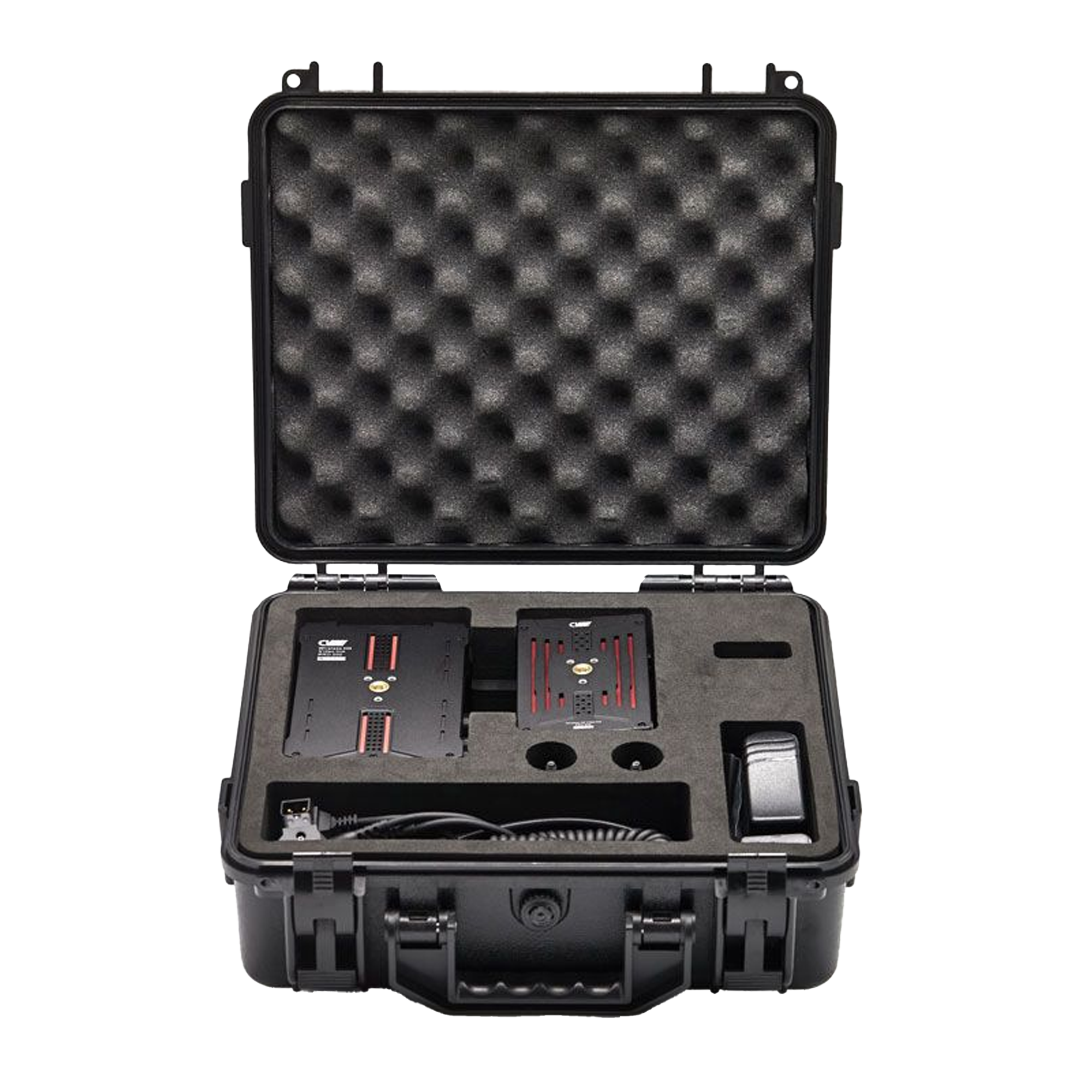

- 1 × Foam-lined protective case
