Crystal Video CVW Pro200
Skip image gallery
Picture similar to product
Zero-Delay Wireless System up to 200 m
Product number:
000138345
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro200"
The CVW Pro200 is a professional zero-delay wireless video transmission system designed for real-time production workflows. It delivers uncompressed Full HD 1080/60p signals with 10-bit 4:2:2 color sampling and less than 1 ms latency over distances up to 200 m (line of sight). Operating in the 5 GHz band with 40 MHz bandwidth, the system offers four manually selectable channels with LED indication.
It supports 3G-SDI and HDMI connections, timecode transmission, and premium audio formats such as PCM, DTS-HD, and Dolby True HD. Both transmitter and receiver feature Sony F-Type battery mounts and NP-F plates, built into durable metal housings with plastic-sleeved antennas. The CVW Pro200 is ideal for broadcast, film, and live applications that require zero-latency video performance.
Main Features:
- Zero-delay transmission (< 1 ms)
- Range up to 200 m (line of sight)
- Full HD 1080/60p uncompressed (10-bit 4:2:2)
- 3G-SDI and HDMI interfaces
- Frequency band: 5 GHz / 40 MHz bandwidth
- 4 manually selectable channels with LED display
- Timecode support
- Audio formats: PCM, DTS-HD, Dolby True HD
- Power via Sony F-Type battery or D-Tap input
- NP-F battery mount on transmitter and receiver
- Metal housing with plastic-coated antennas
- Mounting via cold-shoe adapter or ¼" thread
Included:

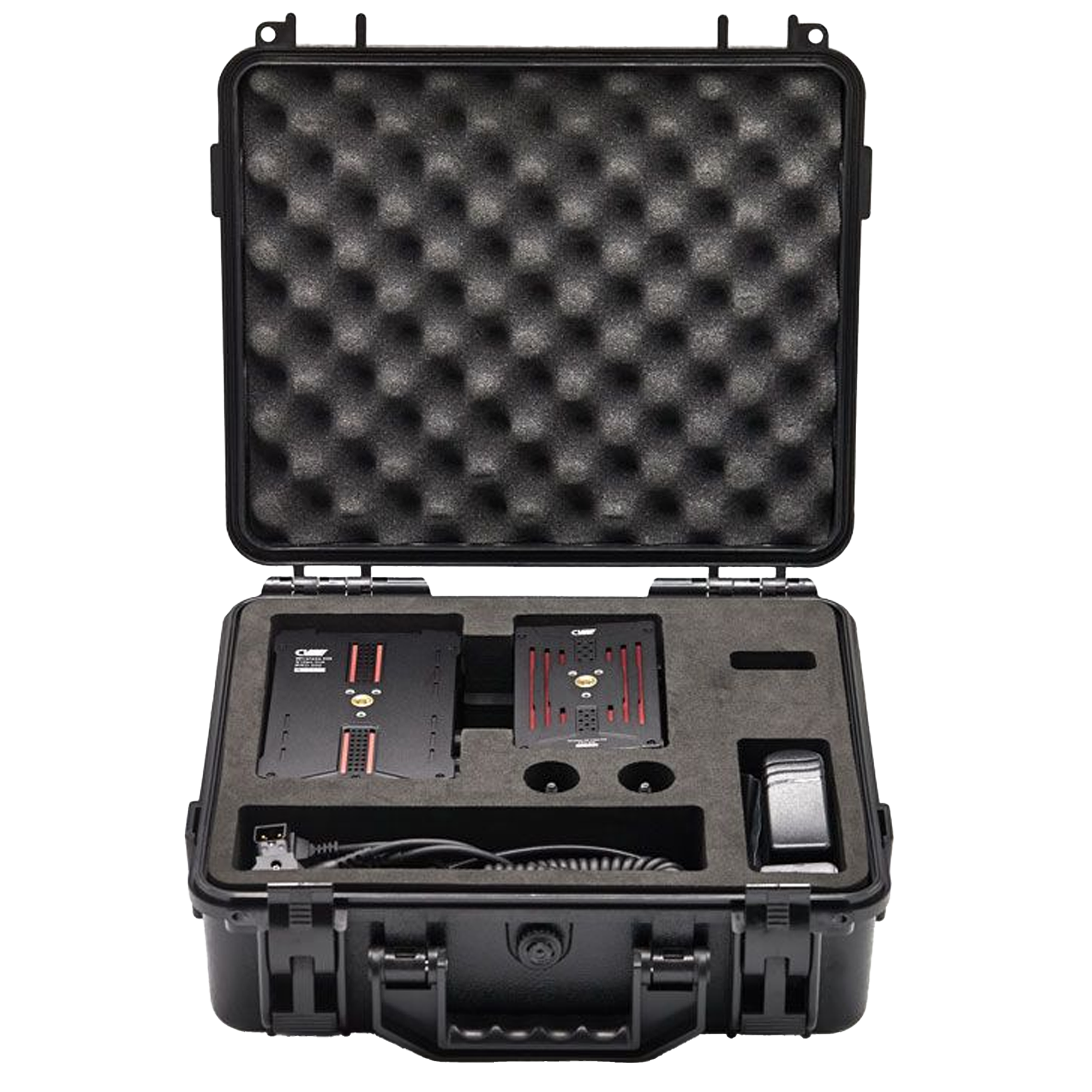

- 1× Carrying case with foam insert
- 1× Transmitter (with 2 antennas)
- 1× Receiver (with 5 antennas)
- 3× Spare antennas
- 2× BNC cables (80 cm)
- 1× Power supply
- 2× DC adapter cables (D-Tap to 2-pin Lemo-compatible)
- 2× Cold-shoe adapters
- 1× V-Mount adapter
