Crystal Video CVW Pro800 Transmitter
Skip image gallery
Picture similar to product
Zero-Delay 3G-SDI/HDMI Transmitter up to 800 m
Product number:
000138347
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro800 Transmitter"
The CVW Pro800 Transmitter is a standalone unit from the Pro800 series designed for professional wireless video transmission with virtually zero latency. It delivers uncompressed Full HD 1080/60p signals with 10-bit 4:2:2 color sampling over distances of up to 800 m (line of sight) and latency below 1 ms. The transmitter features 3G-SDI and HDMI inputs with SDI loop-out, and supports timecode and metadata transmission.
Power is supplied via D-Tap or V-Mount batteries through an adapter plate. Operating in the 5 GHz band with 40 MHz bandwidth, the unit offers four manually selectable channels with LED display. Its compact metal housing with ¼" mount and cold-shoe adapter makes it ideal for camera integration in broadcast and film environments.
Main Features:
- Zero-delay transmission (< 1 ms)
- Range up to 800 m (line of sight)
- Full HD 1080/60p uncompressed (10-bit 4:2:2)
- 3G-SDI input / loop-output and HDMI input
- Supports timecode and metadata transfer
- Audio formats: PCM, DTS-HD, Dolby True HD
- Frequency band: 5 GHz / 40 MHz bandwidth
- 4 manually selectable channels with LED display
- Encryption: AES128/256
- Power via D-Tap or V-Mount battery adapter
- Power consumption: 12 W
- Rugged metal housing with plastic-sleeved antennas
- Mounting via ¼" thread or cold-shoe adapter

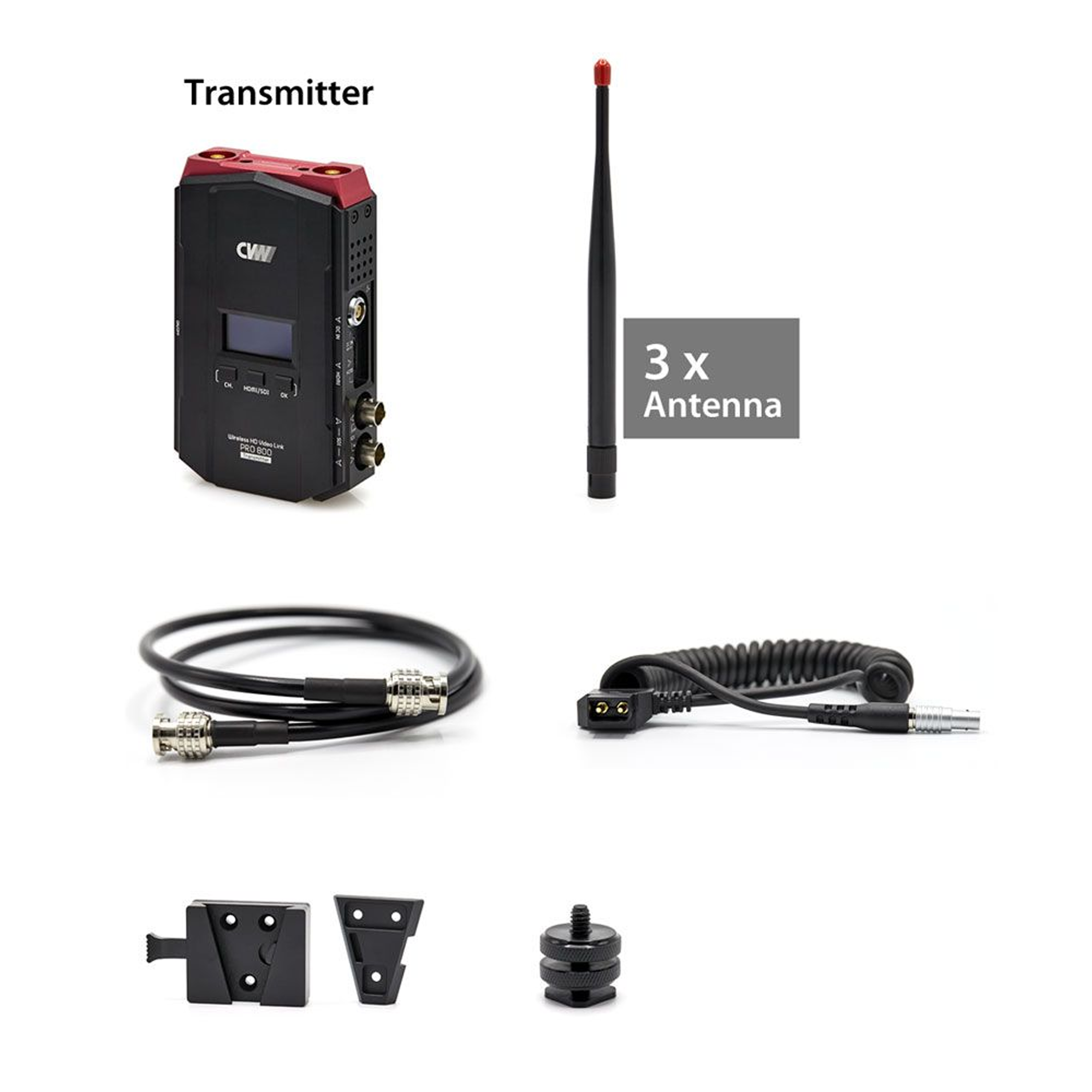

Included:
- 1× Transmitter
- 3× Antennas
- 1× BNC cable
- 1× DC adapter cable (D-Tap to 2-pin Lemo-compatible)
- 1× Cold-shoe adapter
- 1× V-Mount adapter
