Crystal Video CVW Pro800
Skip image gallery
Picture similar to product
800 m Zero-Delay Video Link
Product number:
000138352
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro800"

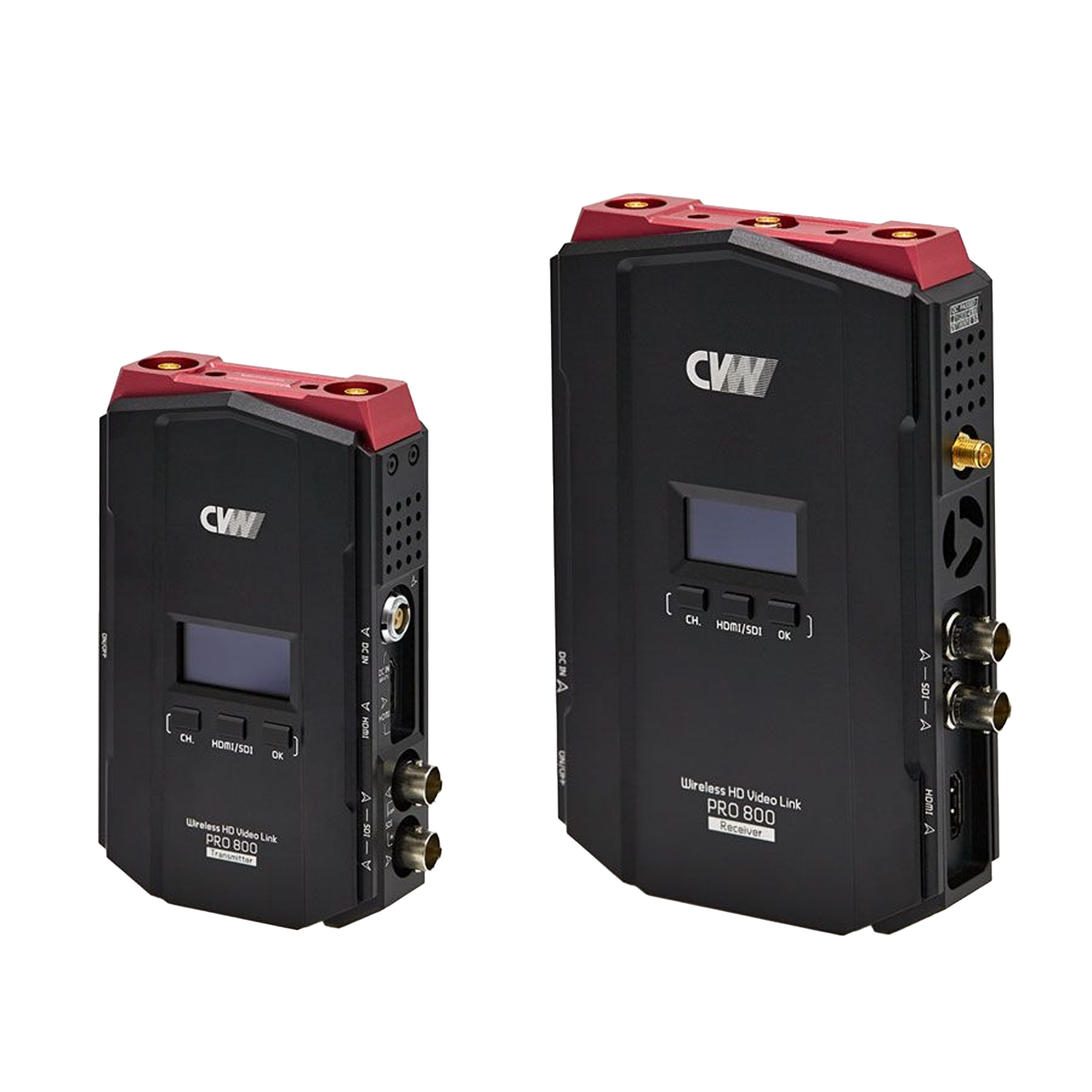

The CVW Pro800 is a professional zero-delay wireless video system for real-time HD transmission. It offers a range of up to 800 m (line of sight) and delivers uncompressed Full HD 1080/60p (10-bit 4:2:2) via SDI and HDMI with less than 1 ms latency.
Operating in the 5 GHz band with a 40 MHz bandwidth, the system provides four manually selectable channels and AES128/256 encryption for secure transmission. Both the transmitter and receiver feature integrated V-Mount battery plates and rugged metal housings, making the Pro800 perfect for film production, live events, and broadcast applications.
Main Features:
- Zero-delay transmission (< 1 ms)
- Range up to 800 m (line of sight)
- Full HD 1080/60p (10-bit 4:2:2, uncompressed)
- 3G-SDI In/Out and HDMI In/Out
- 5 GHz band / 40 MHz bandwidth
- 4 manual channels with LED indicator
- Audio formats: PCM, DTS-HD, Dolby True HD
- Timecode support
- AES 128/256 encryption
- Compact, lightweight metal housing
- Integrated V-Mount battery plates (TX & RX)
- Power via D-Tap or AC adapter

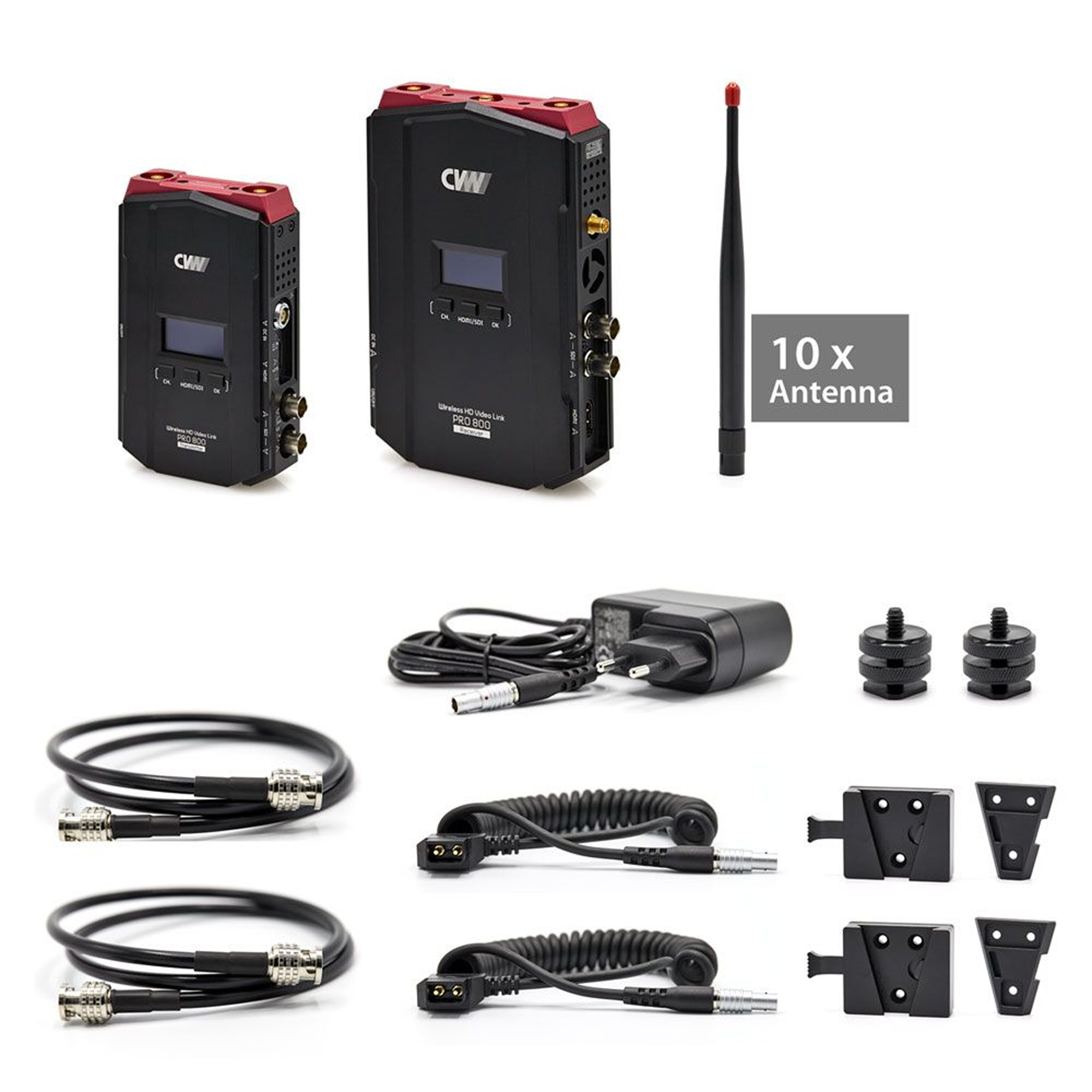

Included:

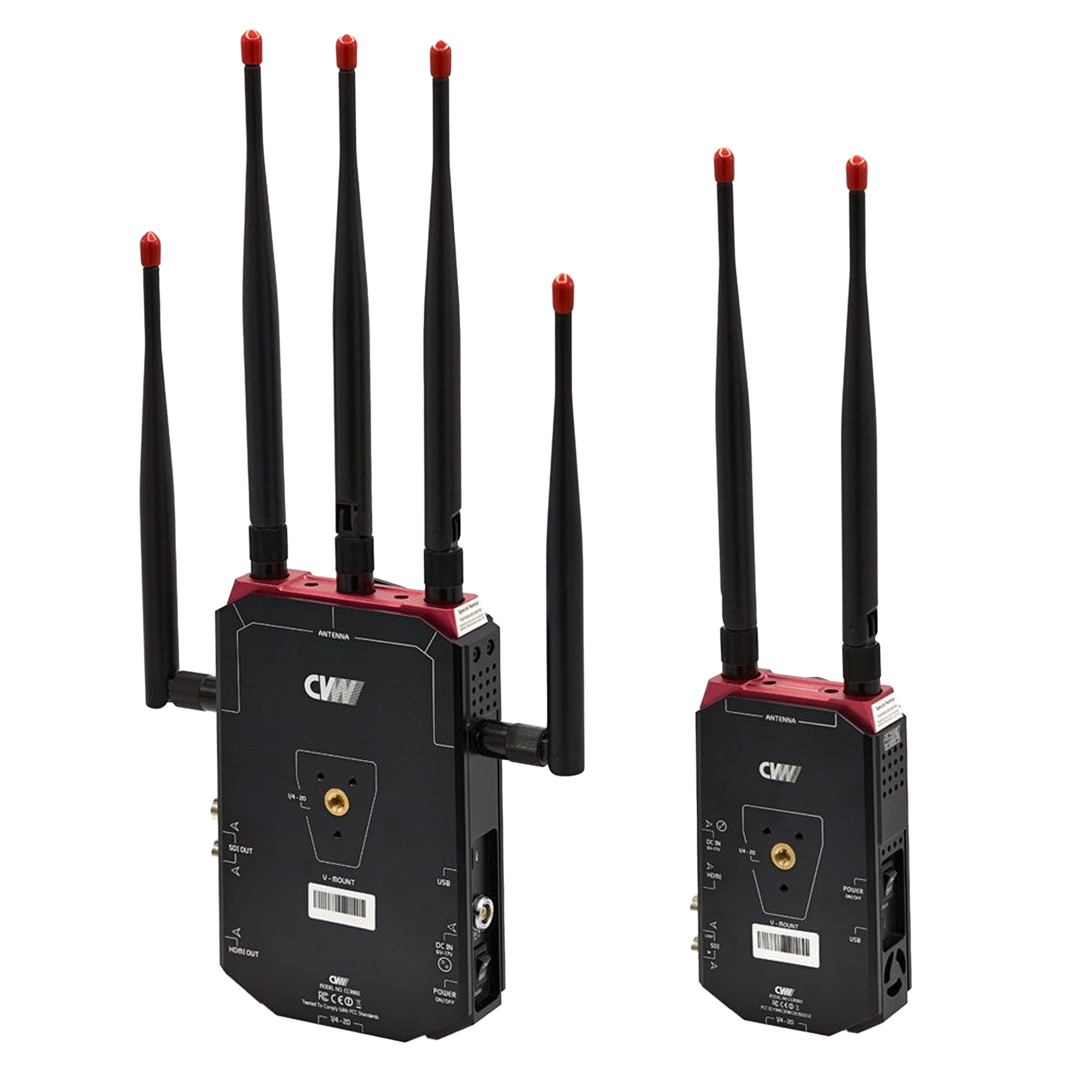

- 1× Transmitter (2 antennas)
- 1× Receiver (5 antennas)
- 3× Spare antennas
- 2× BNC cables
- 1× Power supply
- 2× D-Tap to Lemo adapter cables
- 2× Hot shoe mount adapters
- 2× V-Mount adapters

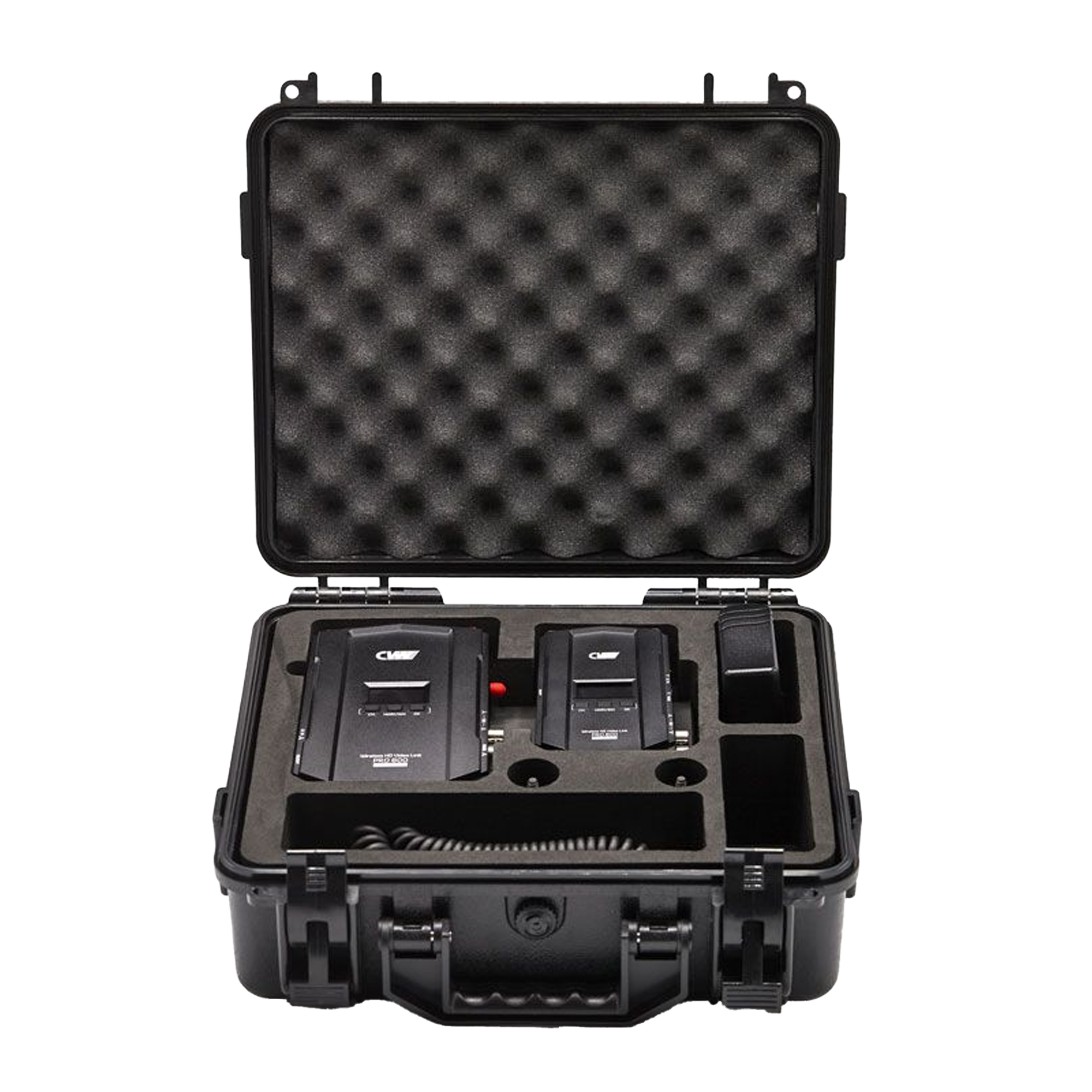

- 1× Foam-lined protective case
