Crystal Video CVW Swift Z
Skip image gallery
Picture similar to product
Wireless Video Set with 5.5" Monitors (up to 250 m
Product number:
000138346
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Swift Z"

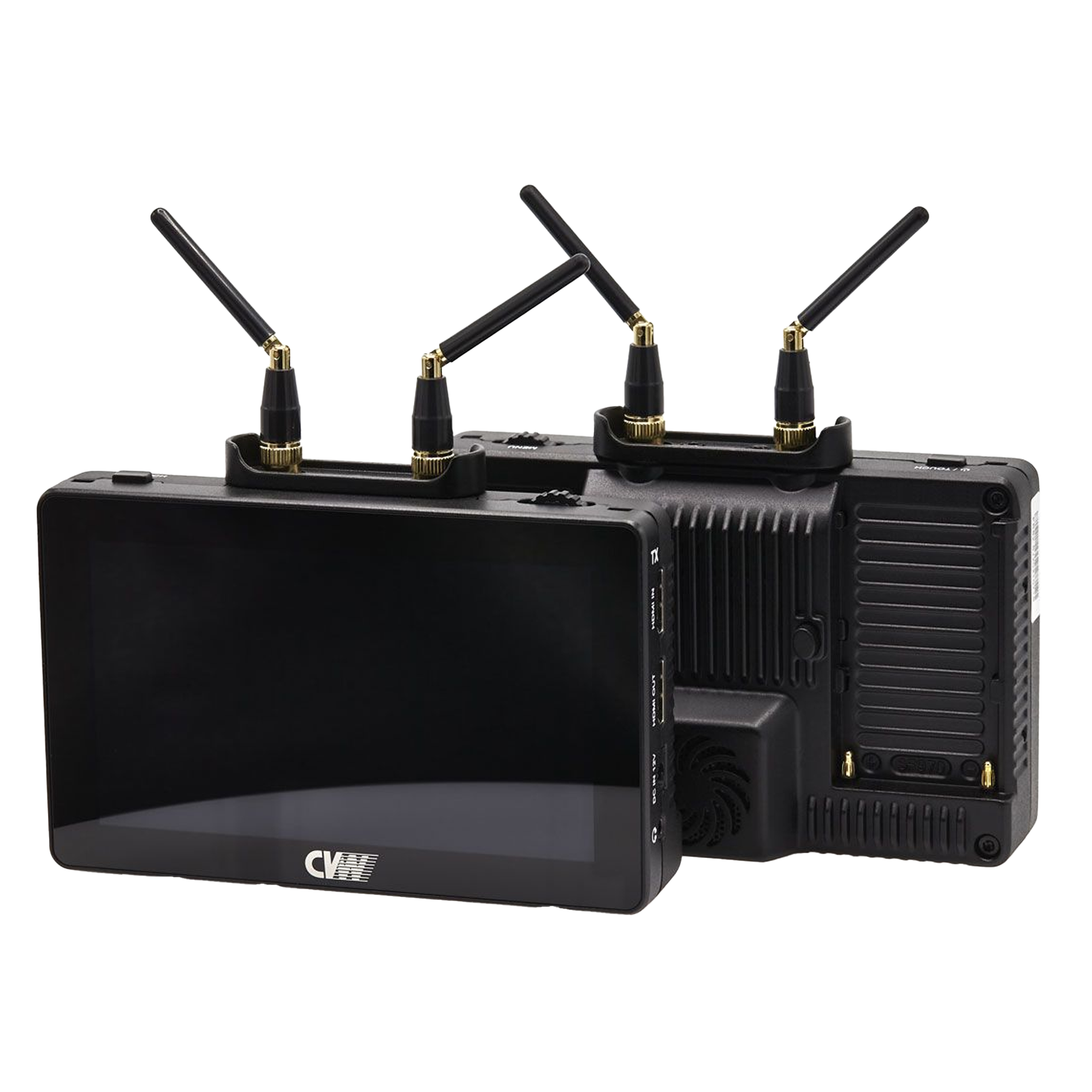

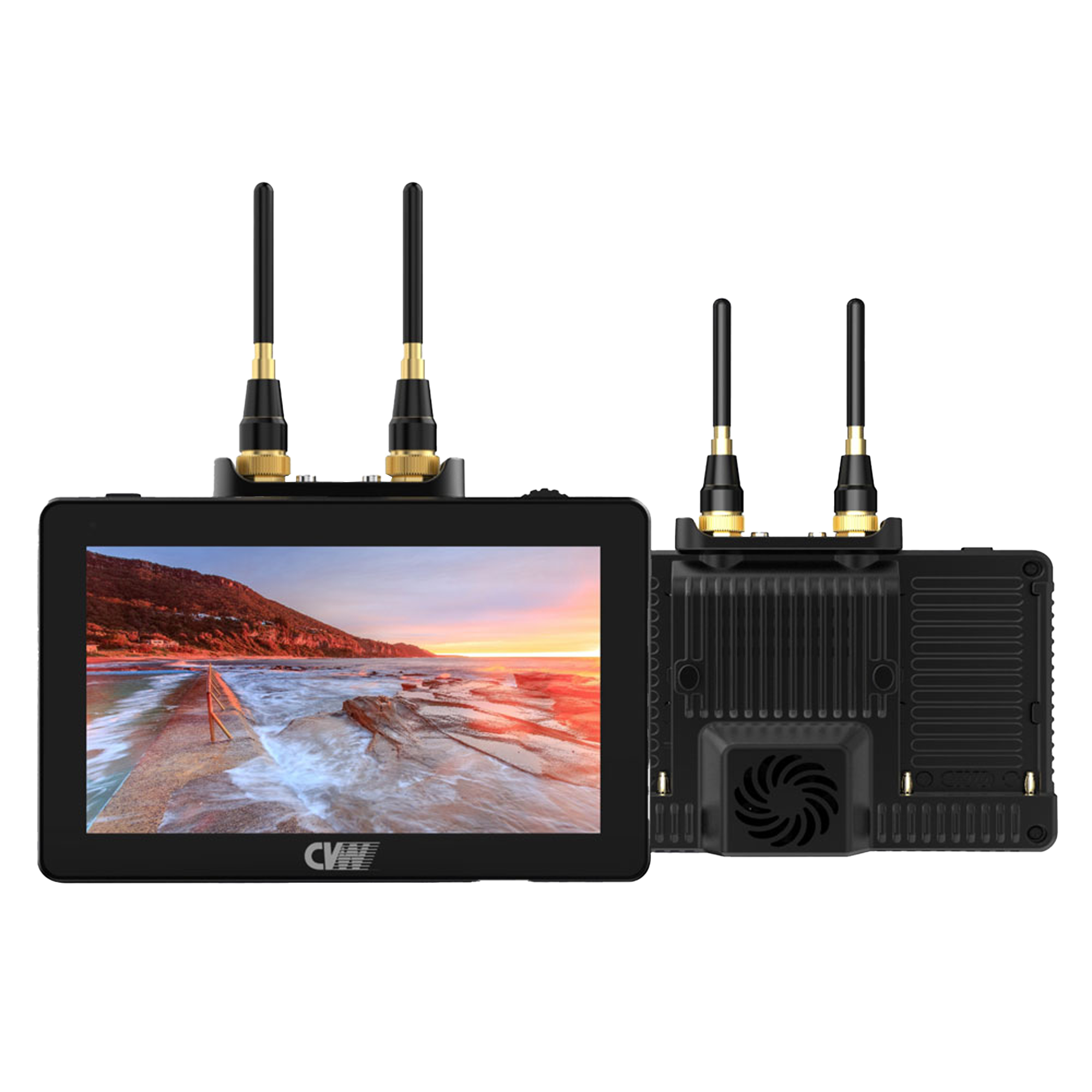

The CVW Swift Z is a compact wireless video transmission system with integrated 5.5" monitors on both transmitter and receiver. It combines zero-latency Full HD wireless video transfer with on-set monitoring capabilities in one device. With a range of up to 250 m (line of sight) and a latency below 70 ms, it is ideal for director monitoring, focus pulling and mobile video production setups.
The monitors feature a 1920×1080 IPS touchscreen display with 500 nits brightness and 1000:1 contrast ratio, supporting HDR and 3D LUT import. Built-in tools include histogram, waveform, audiometer, focus assist and vectorscope. Both units are powered via dual NP-F battery mounts or a DC input of 7–24 V. Operating in the 5 GHz band, the Swift Z offers eight manually selectable channels with LED indication.
Main Features:
- Integrated wireless TX/RX system with built-in monitors
- Transmission range up to 250 m (line of sight)
- Latency < 70 ms
- Full HD 1080p (60 fps) video transmission
- 5.5" IPS touchscreen display (1920×1080 px)
- 4K input / Full HD output
- Brightness: 500 nits, contrast ratio 1000:1
- Supports HDR, 3D LUT, histogram, waveform, audiometer, parade and vector display

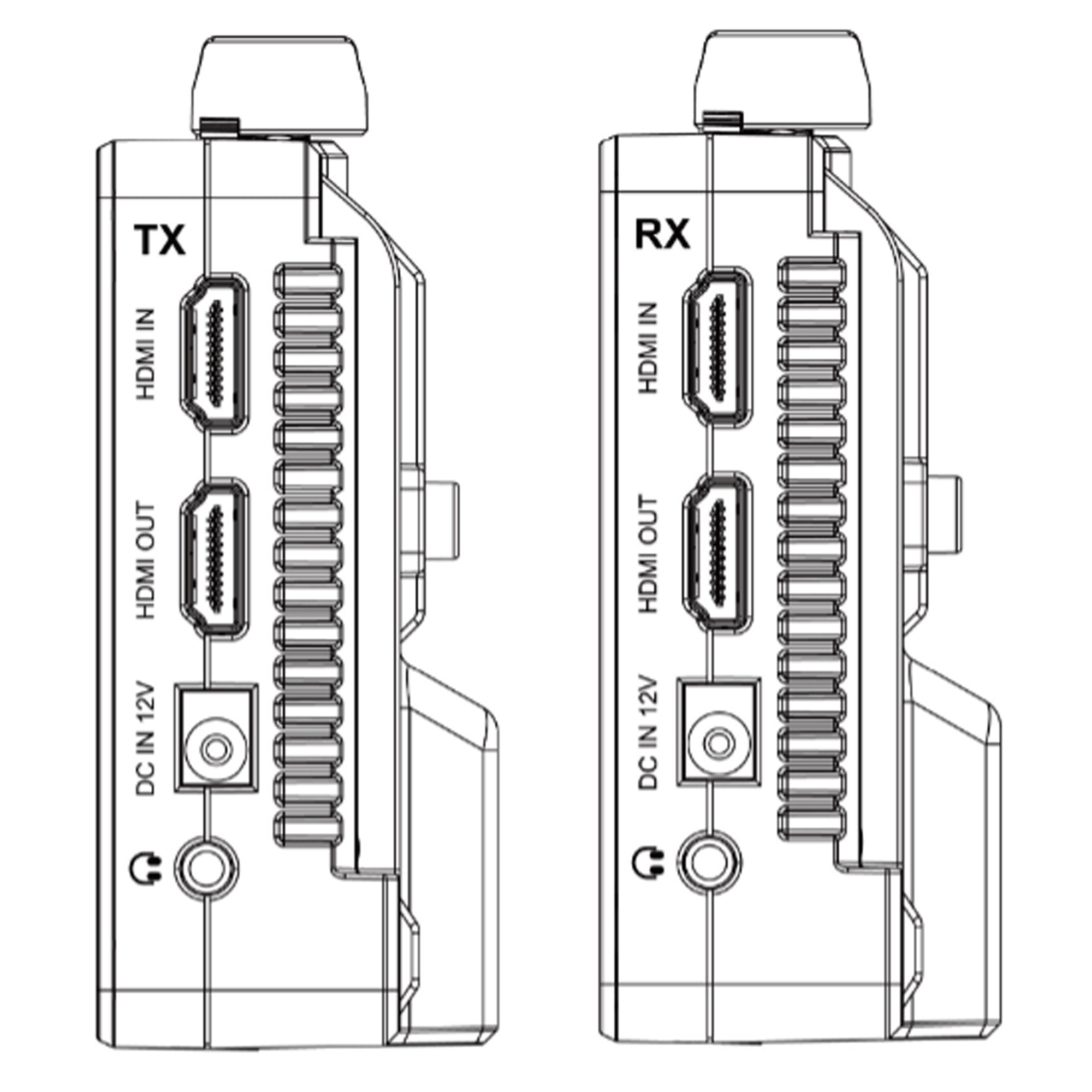

- HDMI input/output on both units
- Dual NP-F battery mount or DC 7–24 V power supply
- Frequency range: 5.1 – 5.9 GHz (8 channels, manual selection)
- Bandwidth: 40 MHz
- 2 antenna ports per device
- ¼" thread and hot-shoe mount for camera rigs

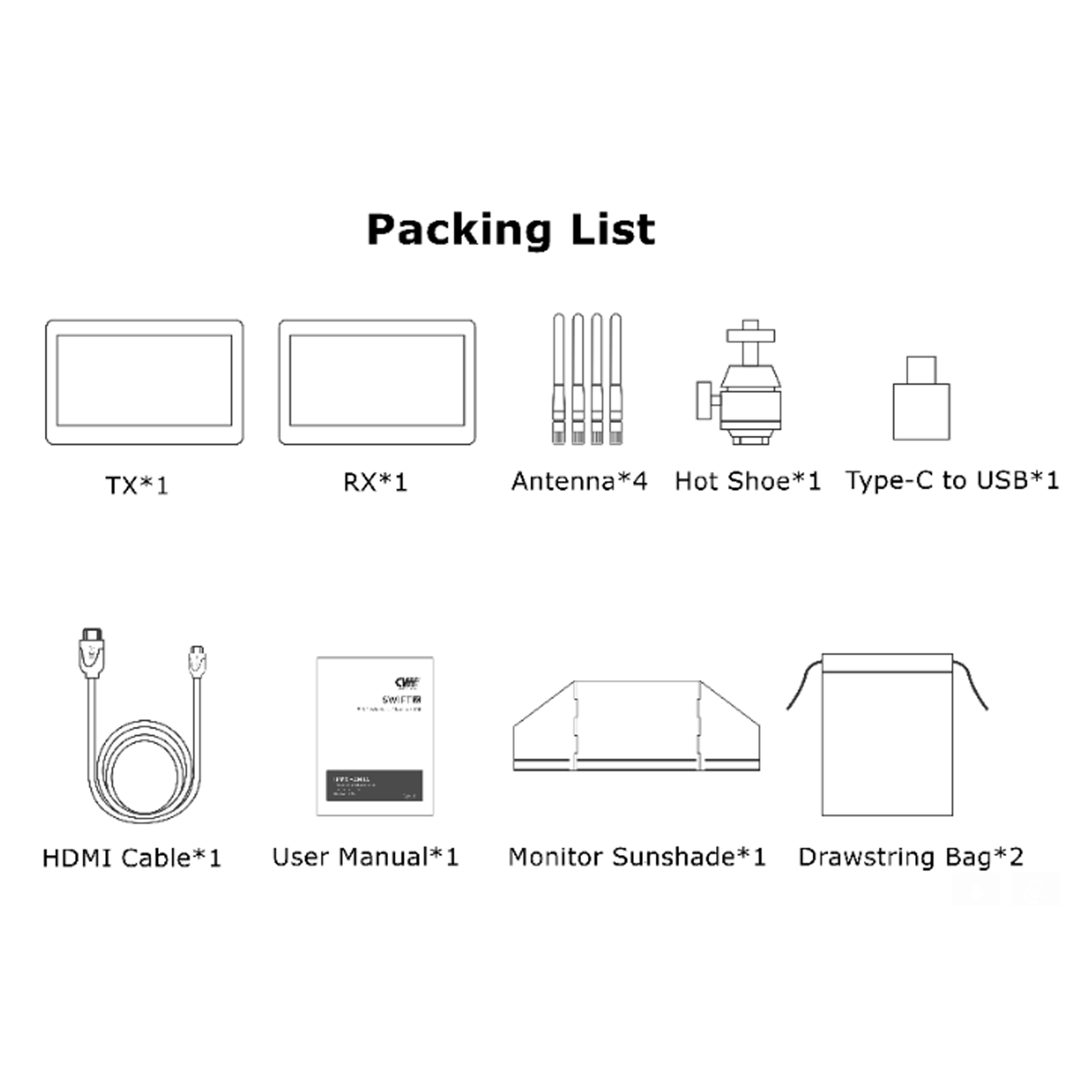

Included:
- 1× Transmitter with 5.5" monitor
- 1× Receiver with 5.5" monito
- 4× Antennas
- 1× Hot-shoe mount
- 1× USB-A to USB-C adapter
- 1× HDMI cable

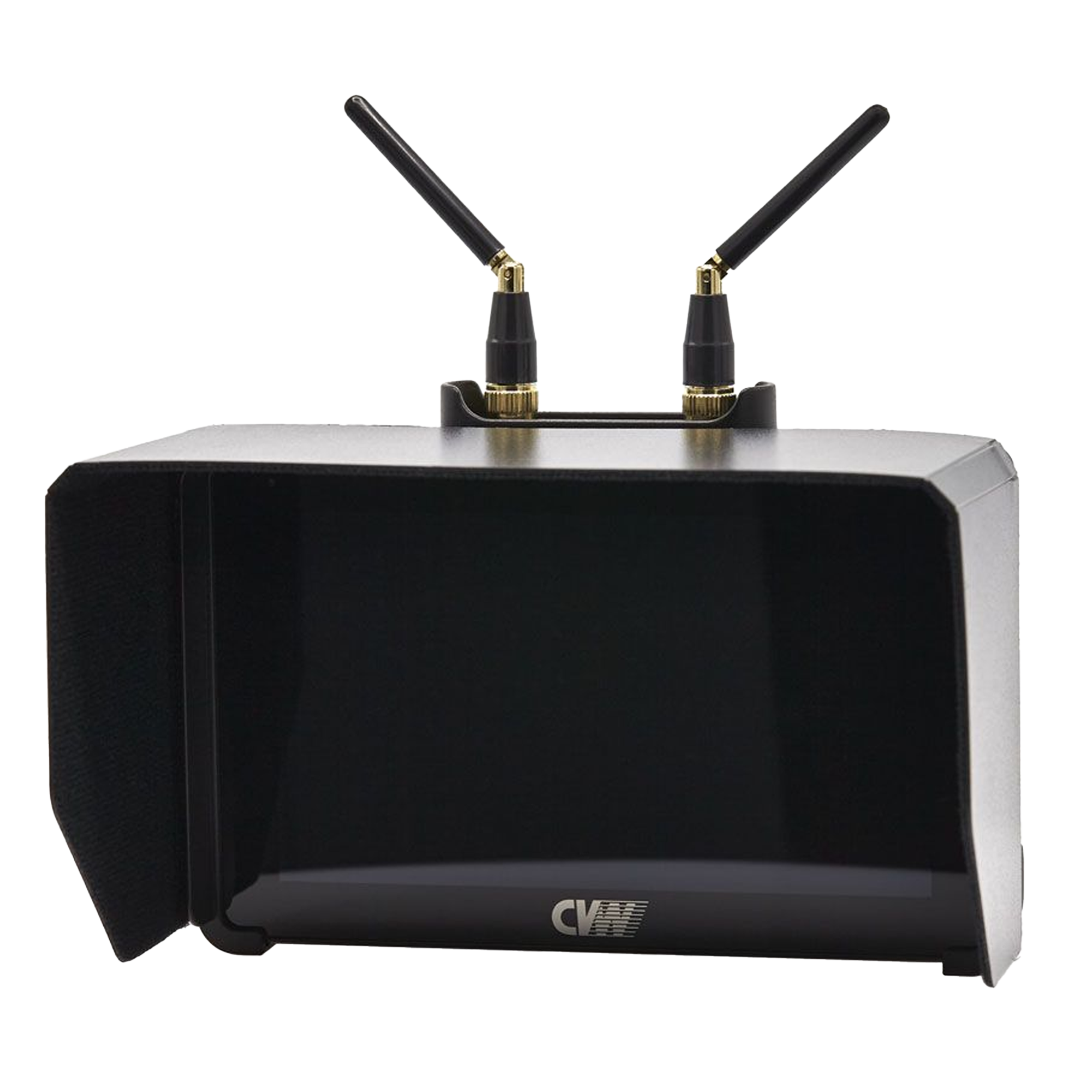

- 1× Sunhood
The monitors feature a 1920×1080 IPS touchscreen display with 500 nits brightness and 1000:1 contrast ratio, supporting HDR and 3D LUT import. Built-in tools include histogram, waveform, audiometer, focus assist and vectorscope. Both units are powered via dual NP-F battery mounts or a DC input of 7–24 V. Operating in the 5 GHz band, the Swift Z offers eight manually selectable channels with LED indication.
Main Features:
- Integrated wireless TX/RX system with built-in monitors
- Transmission range up to 250 m (line of sight)
- Latency < 70 ms
- Full HD 1080p (60 fps) video transmission
- 5.5" IPS touchscreen display (1920×1080 px)
- 4K input / Full HD output
- Brightness: 500 nits, contrast ratio 1000:1
- Supports HDR, 3D LUT, histogram, waveform, audiometer, parade and vector display
- HDMI input/output on both units
- Dual NP-F battery mount or DC 7–24 V power supply
- Frequency range: 5.1 – 5.9 GHz (8 channels, manual selection)
- Bandwidth: 40 MHz
- 2 antenna ports per device
- ¼" thread and hot-shoe mount for camera rigs
Included:
- 1× Transmitter with 5.5" monitor
- 1× Receiver with 5.5" monito
- 4× Antennas
- 1× Hot-shoe mount
- 1× USB-A to USB-C adapter
- 1× HDMI cable
- 1× Sunhood
