Crystal Video CVW Pro200 Receiver
Skip image gallery
Picture similar to product
Zero-Delay SDI/HDMI Receiver up to 200 m
Product number:
000138349
Important note
- We only sell to companies, traders, sole traders, freelancers, institutions and authorities.
Product information "Crystal Video CVW Pro200 Receiver"

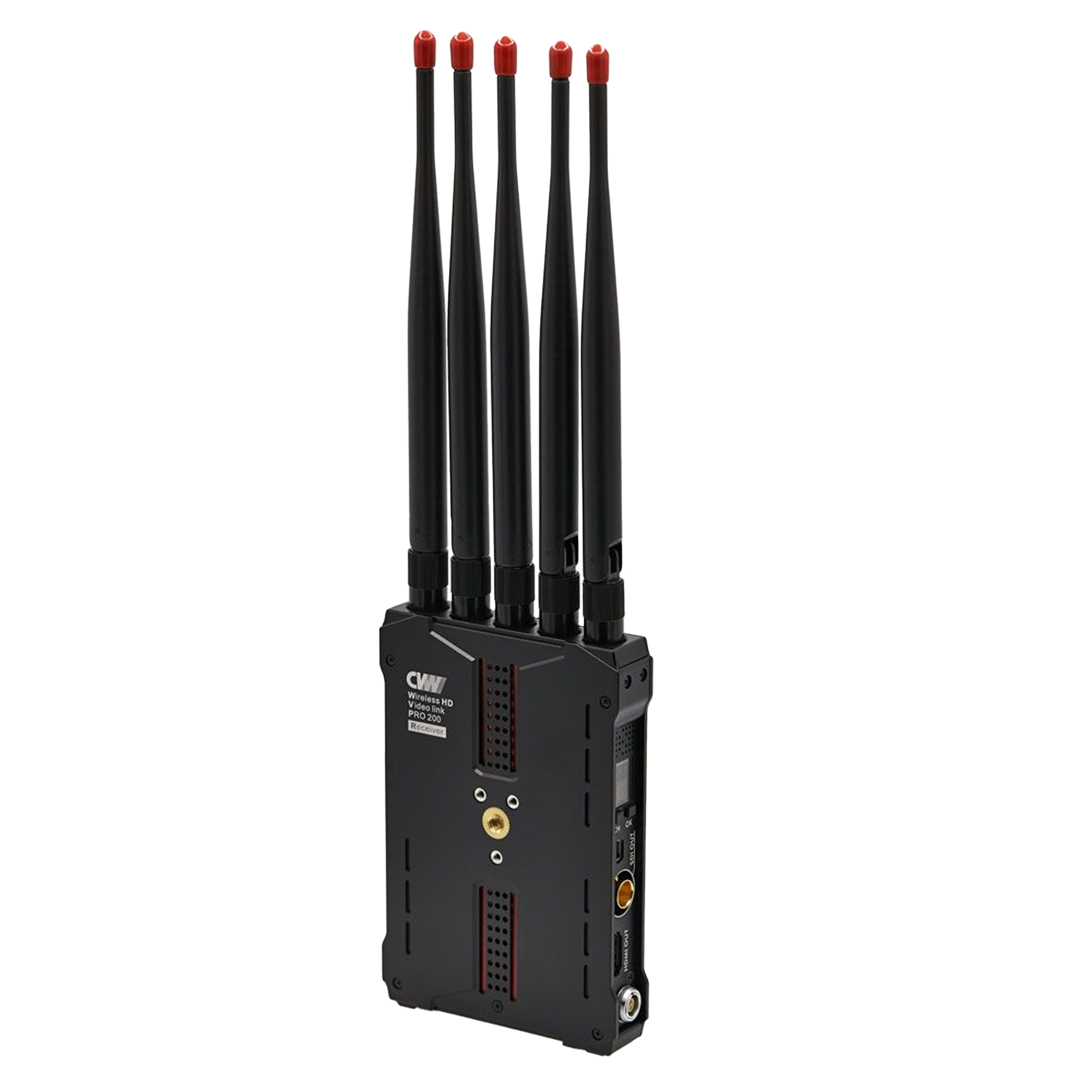

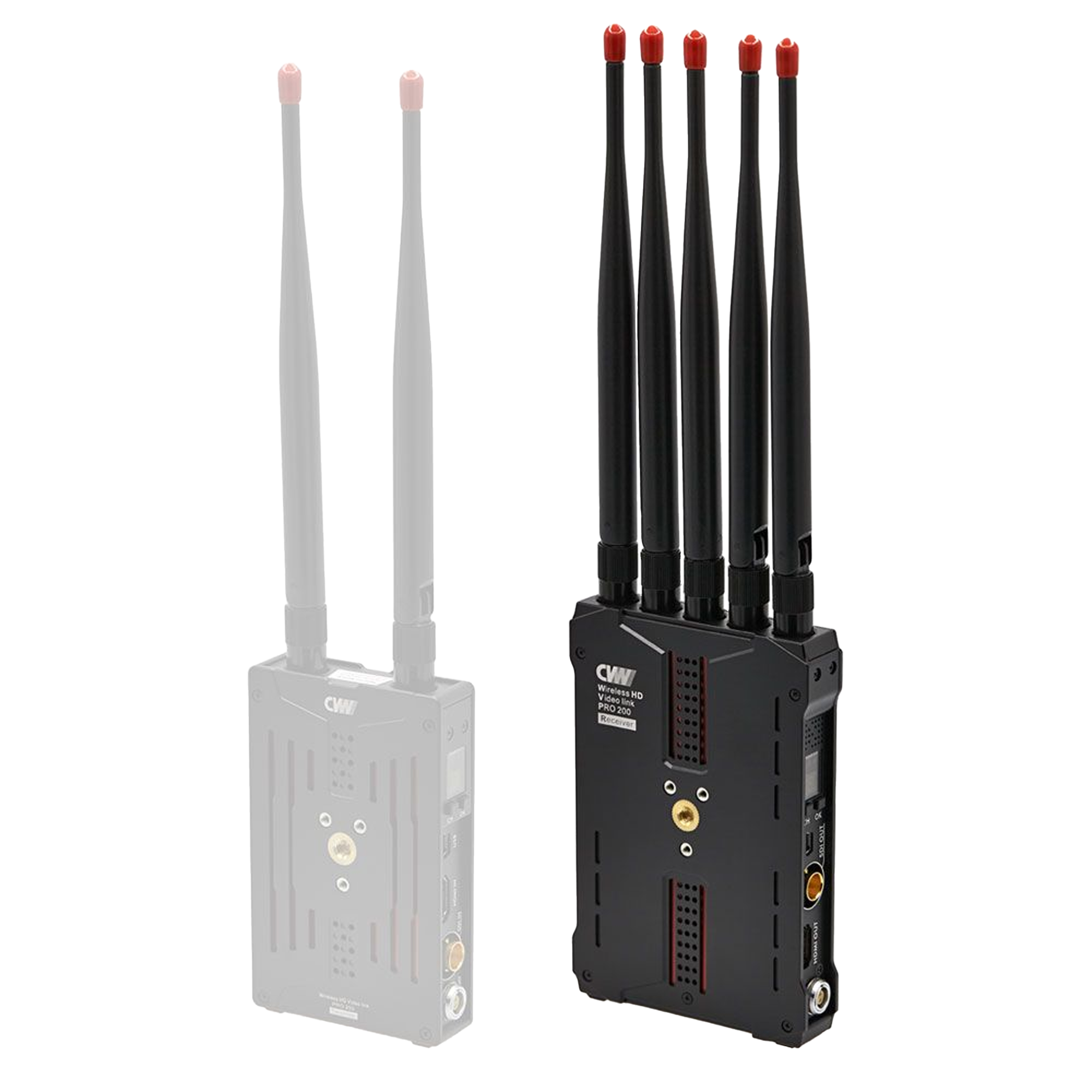

The CVW Pro200 Receiver is a standalone unit from the CVW Pro200 series designed for real-time wireless video reception with latency below 1 ms. It receives uncompressed Full HD (10-bit 4:2:2) video signals over distances up to 200 m (line of sight). Featuring 3G-SDI and HDMI outputs, the receiver also supports timecode transmission and professional audio formats such as PCM, DTS-HD, and Dolby True HD.
Operating in the 5 GHz band with 40 MHz bandwidth, the system provides four manually selectable channels with LED indication. The CVW Pro200 Receiver includes a built-in Sony F-Type battery plate and supports D-Tap power input. The compact and durable metal housing ensures reliability in professional production environments.
Main Features:
- Zero-delay transmission (< 1 ms)
- Range up to 200 m (line of sight)
- Full HD 1080/60p uncompressed (10-bit 4:2:2)

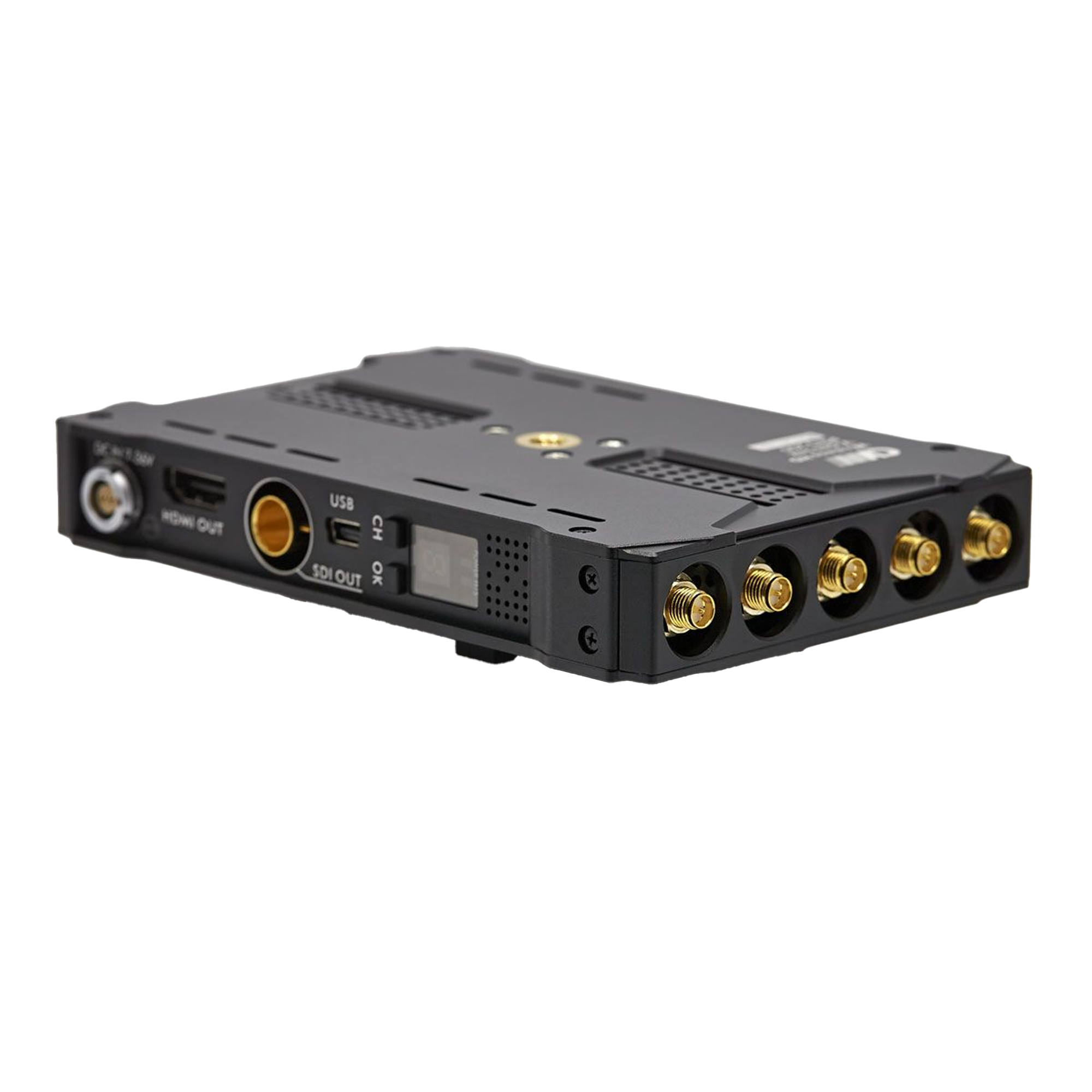

- 3G-SDI and HDMI outputs
- Timecode support
- Audio formats: PCM, DTS-HD, Dolby True HD
- Frequency band: 5 GHz / 40 MHz bandwidth
- 4 manually selectable channels with LED display

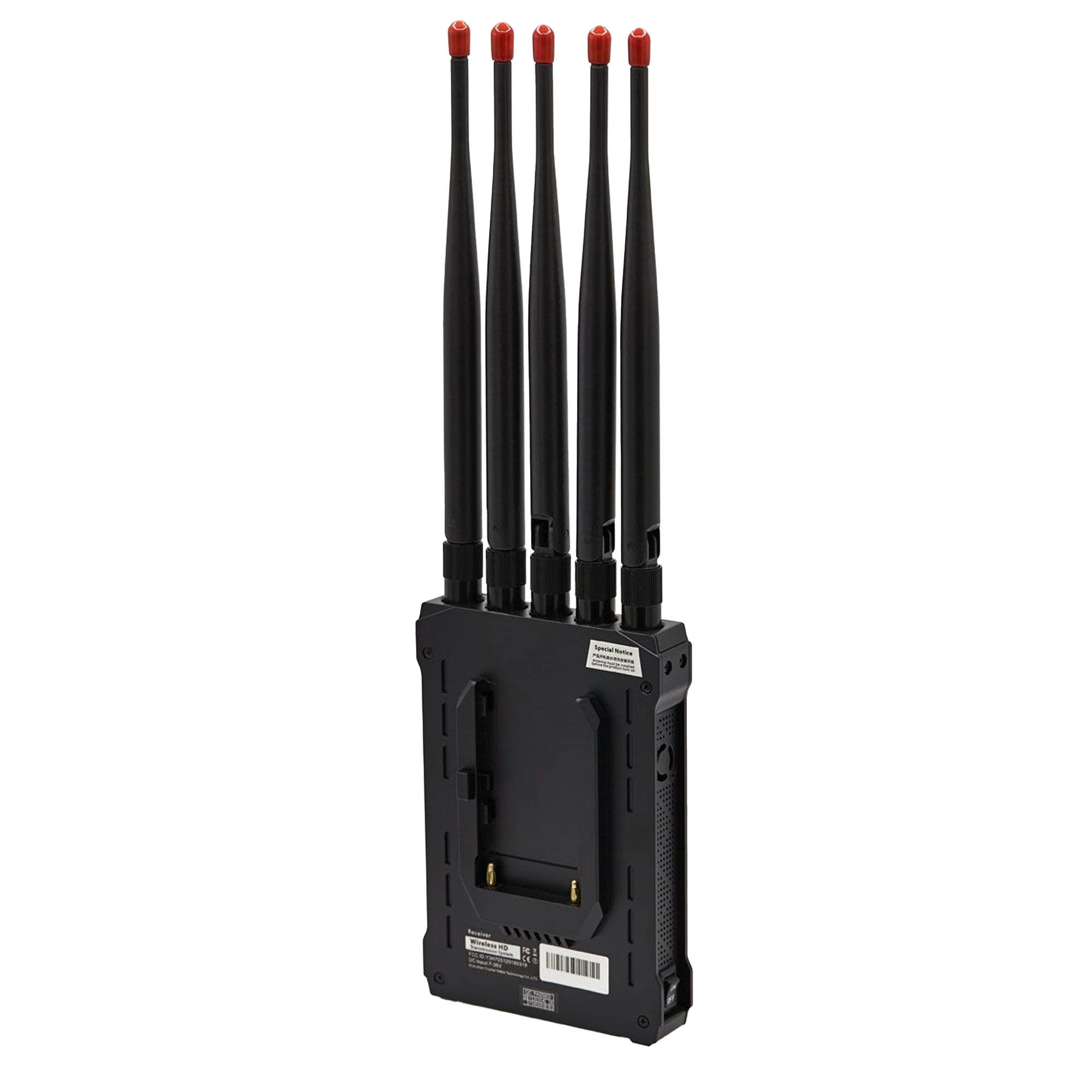

- Power via D-Tap or integrated Sony F-Type battery mount
- Power consumption: 7 W
- Rugged metal housing with plastic antennas
- Mounting via ¼" thread or cold-shoe adapter

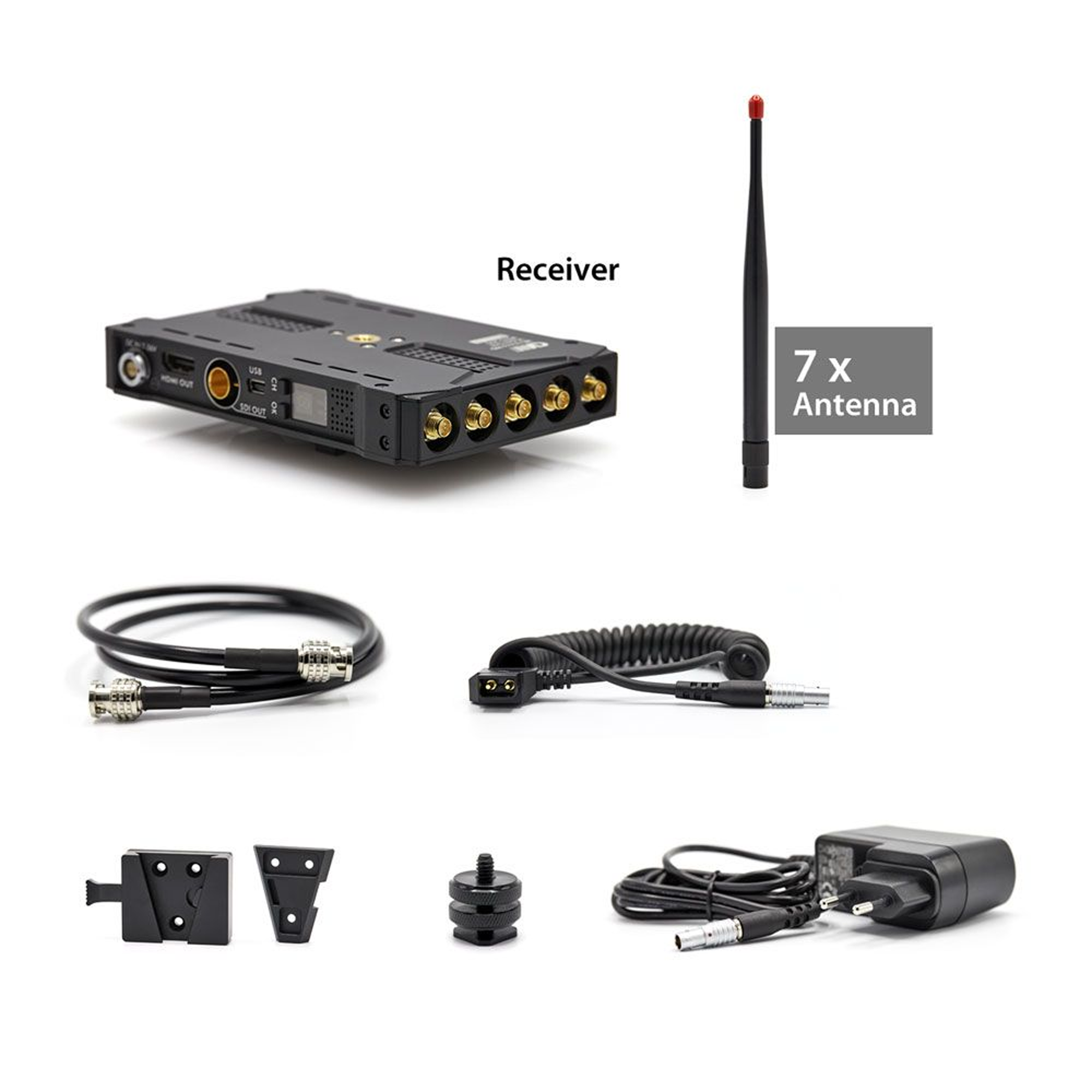

Included:
- 1× Receiver
- 7× Antennas
- 1× BNC cable (80 cm)
- 1× DC adapter cable (D-Tap to 2-pin Lemo-compatible)
- 1× Power supply
- 1× Cold-shoe adapter
- 1× V-Mount adapter
